- Supports USB 1.0(low-speed), USB 1.1(full-speed) and USB 2.0(high-speed)
- Extends the transmission up to 328feet (100 meters) from USB device
- Supports PoC(Power over Cable) which can power units from TX side with power supply
- Supports four USB peripheral devices
- Full Duplex RS-232 control 115,200 bps through connector
- Easy to setup
- Using HDBase-T technology
- Supports hot plug function
- Does not require additional drivers

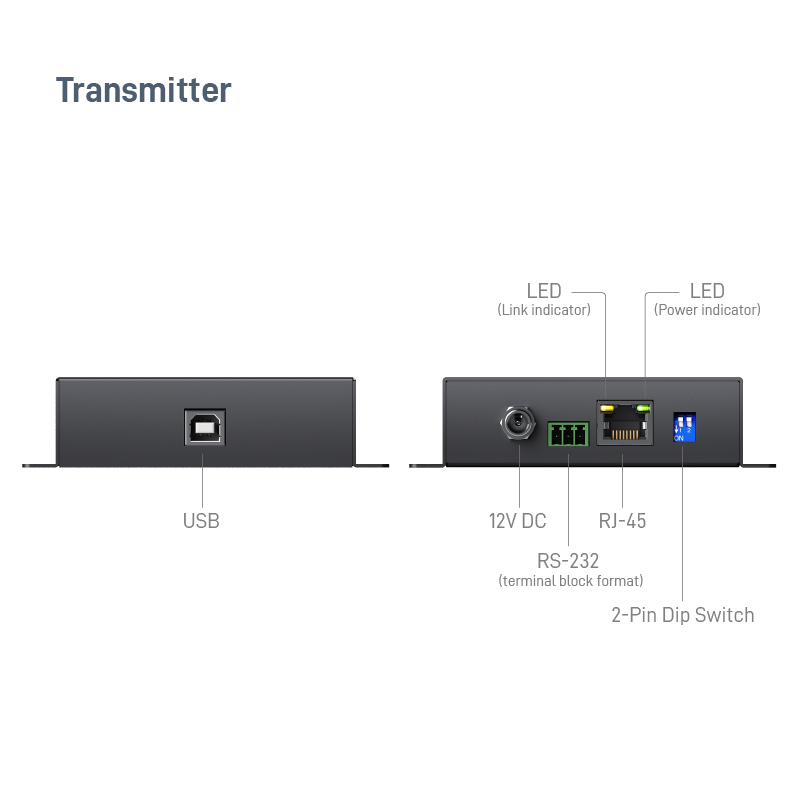

The EX-27V USB 2.0 Extender over Single Cat.X with RS-232 & PoC makes USB equipped device accessible over single Cat.X cable. EX-27V helps you extend USB peripheral device up to 328feet (100 meters) over single Cat.X cable. The extender consists of two units, local and remote unit. The local unit connects to the PC and the remote unit connects to the peripheral device, such as USB printers, USB camera, USB Storage devices, USB Card-Readers, and more. In addition, EX-27V is also equipped with RS-232 serial port control and supports PoC (Power over Cable) which can power units from TX side with power supply. EX-27V offers the most convenient solution for long distance USB 2.0 transmission path.
-
USB compliance
-
2.0
-
Max. Distance
-
Up to 100m (Cat 5e/6)
-
Max. Data Rate
-
480 Mbps
-
RS232 Control
-
Full Duplex (2,400—115,200 bps)
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
POC
-
UNIdirectional (TX→RX); Single PSU Required
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 1A
-
Power Consumption
-
7 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
⎖ TX : 216g (7.6 oz.)
⎖ RX : 198g (7.0 oz.)
-
Package Weight
-
⎖ TX : 376g (13.3 oz.)
⎖ RX : 367g (13.0 oz.)
-
Certifications
-
CE, FCC, RoHS
