CV-35AK
12G/6G/3G/HD-SDI to HDMI 2.0 Converter with Audio Extractor
  • 12G/6G/3G/HD-SDI to HDMI 2.0
  • Full HDMI support including embedded audio
  • Auto 12G/6G/3G/HD-SDI detection
  • Log jitter SDI outputs
  • Compact and portable enclosure
Overview

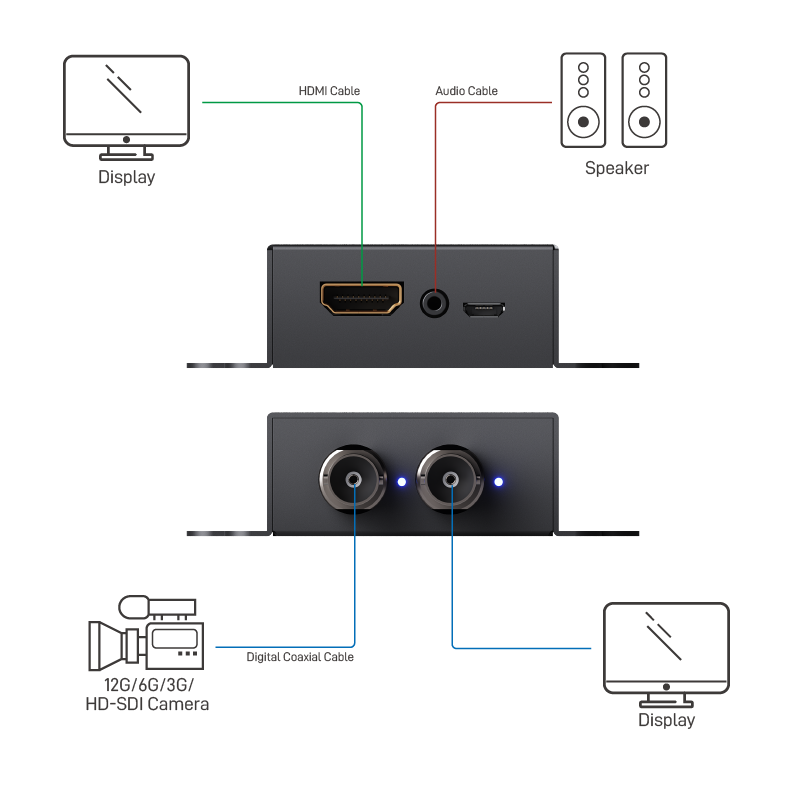

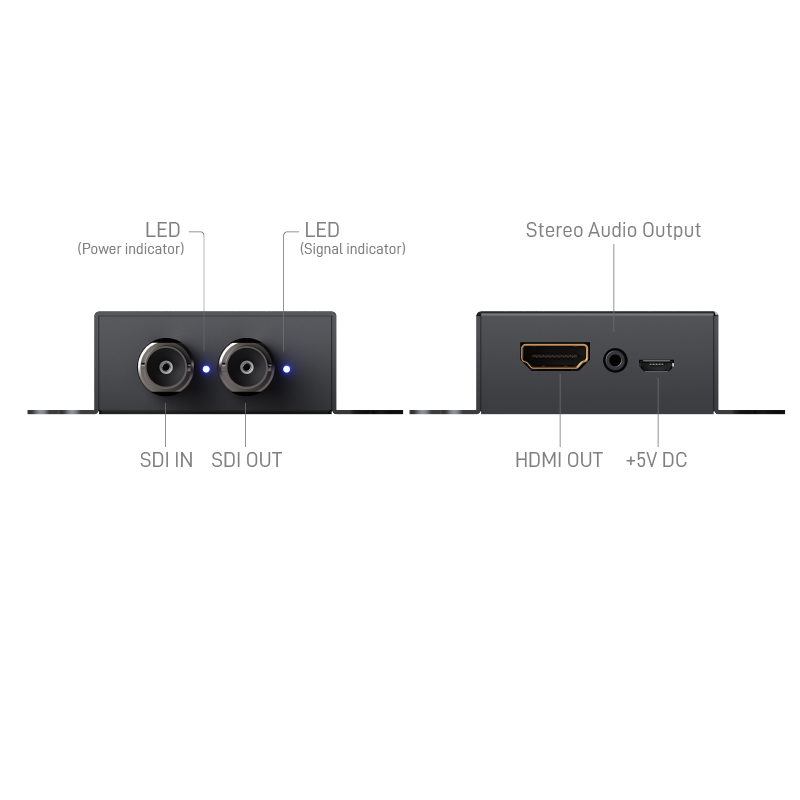

The CV-35AK 12G/6G/3G/HD-SDI to HDMI 2.0 Converter with Audio Extractor provides a cost effective way to convert 12G/6G/3G/HD-SDI signal to HDMI compliant format. The conversion between SDI and HDMI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-35AK also provides one low jitter SDI local loop-out and high quality analog stereo output to provide the flexibility to users. With the use of CV-35AK, the most popular uncompressed video interface in the consumer world is readily available for professional SDI equipment!
SPECIFICATIONS
Technical
  • HDMI Compliance

  • 2.0

  • SDI Formats

  • SMPTE 2082; 11.88 Gbps／12G-SDI：2160p at 50/59.95/60 Hz。
    SMPTE 2081; 5.94 Gbps／6G-SDI：2160p at 25/29.97/30 Hz。
    SMPTE 424M-2.97 Gbps／3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
    SMPTE 274M-1.485 Gbps／HD-SDI：1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
    SMPTE 292M-1.485 Gbps／HD-SDI：1080i at 30 Hz, 720p at 60 Hz。
    SMPTE 296M-1.485 Gbps／HD-SDI：720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。

  • HDMI Formats

  • 4K UHD Video Standards／2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
    UHD Video Standards／1080p at 50/59.94/60 Hz (4:2:2)
    HD Video Standards／720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz

  • SDI Bitrate

  • 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps

  • Video Sampling

  • 4：2：2

  • Audio Sampling

  • 48 kHz & 24 bit

  • Auto Switching

  • Auto switching between HD／3G／6G／12G-SDI

  • Cable Reach

  • [12G-SDI] up to 70m (233ft)
    [6G-SDI] up to 100m (330ft)
    [3G-SDI] up to 190m (627ft)
    [HD-SDI] up to 250m (825ft)

  • Eye-patten Measurements

  • Amplitude：within 800mV
    Raise & Fall time：<45ps> Alignment jitter：<0.3 (100KHz to 1188MHz)

  • ESD Protection

  • 8 KV—Contact Discharge
    15KV—Air Discharge

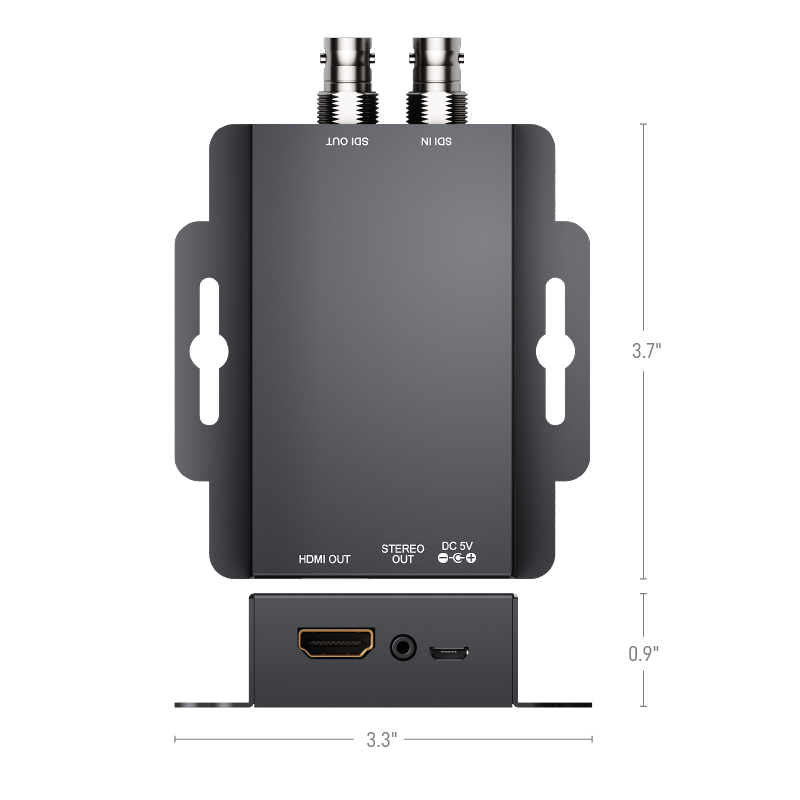

Mechanical
  • Housing Design

  • Metal

  • Casing Style

  • Wall Mountable

  • Power Connection

  • Micro-USB Port

  • Power Supply

  • 5V DC, 1A

  • Power Consumption

  • 2.5 watts (Max.)

  • Operating Humidity

  • 20-90% RH (no condensation)

  • Operation temperature

  • 0~40°C (32~104°F)

  • Product Weight

  • 175g

  • Package Weight

  • 390g

  • Certifications

  • CE, FCC, RoHS
