    EX-26O1
    USB 3.2 Gen 1 over Fiber Extender
    • Extend HDMI signals follow SFP module(5km, 20km, or 50km) over single mode fiber optic cables
    • Supports USB 1.0(low-speed), USB 1.1(full-speed), USB 2.0(high-speed) and USB 3.2 Gen 1(rate up to 5 Gbps)
    • Supports four USB peripheral devices
    • Built-in 10/100 Mbps Ethernet port with transparent pass-through mode (only supported in point-to-point connections between TX and RX)
    • Supports hot plug function
    • Does not require additional drivers
    • Easy to setup
    Overview

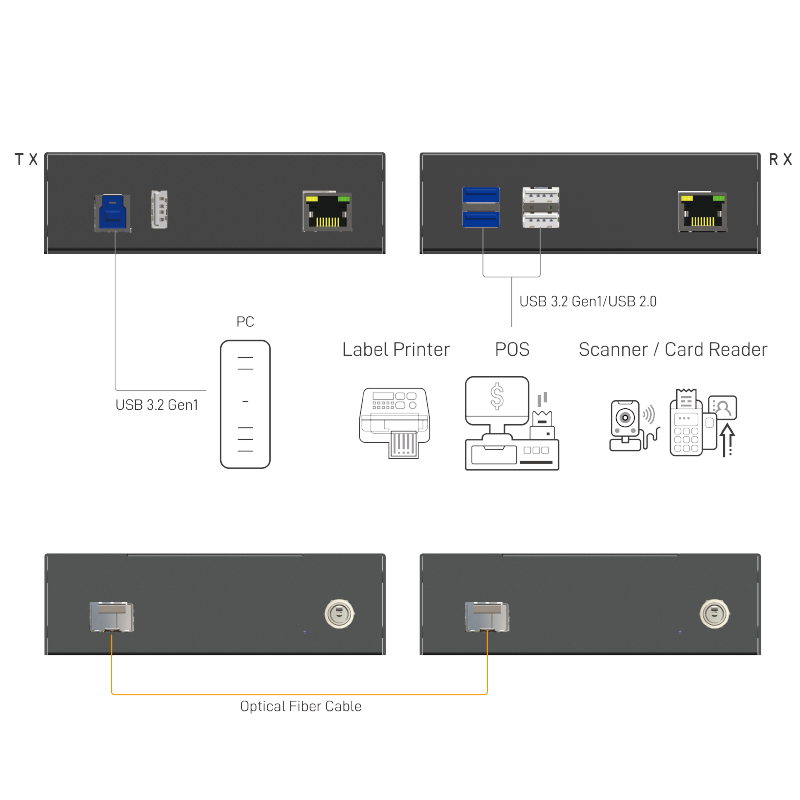

    The EX-26O1 USB 3.2 Gen 1 over Fiber Extender extends the transmission distance of USB peripherals follow SFP module(5km, 20km, or 50km) over single mode fiber optic cables. The system includes two units: a local unit that connects to the PC and a remote unit that connects to the USB device, such as printers, cameras, storage drives, card readers, and more. The EX-26O1 also features a built-in 10/100 Mbps Ethernet port with transparent pass-through mode. It provides a convenient solution for transmitting USB 3.2 Gen 1 signals over long distances.

    SPECIFICATIONS
    Technical
    • USB compliance

    • USB 3.2 Gen 1

    • Bandwidth

    • Up to 5 Gbps

    • USB over UTP transmission

    • follow SFP module(5km, 20km, or 50km)

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 1A

    • Power Consumption

    • 7 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • ⎖ TX : 216g (7.6 oz.)
      ⎖ RX : 198g (7.0 oz.)

    • Package Weight

    • ⎖ TX : 376g (13.3 oz.)
      ⎖ RX : 367g (13.0 oz.)

    • Certifications

    • CE, FCC, RoHS
