    O1stream WAN Emulator-Pro Edition

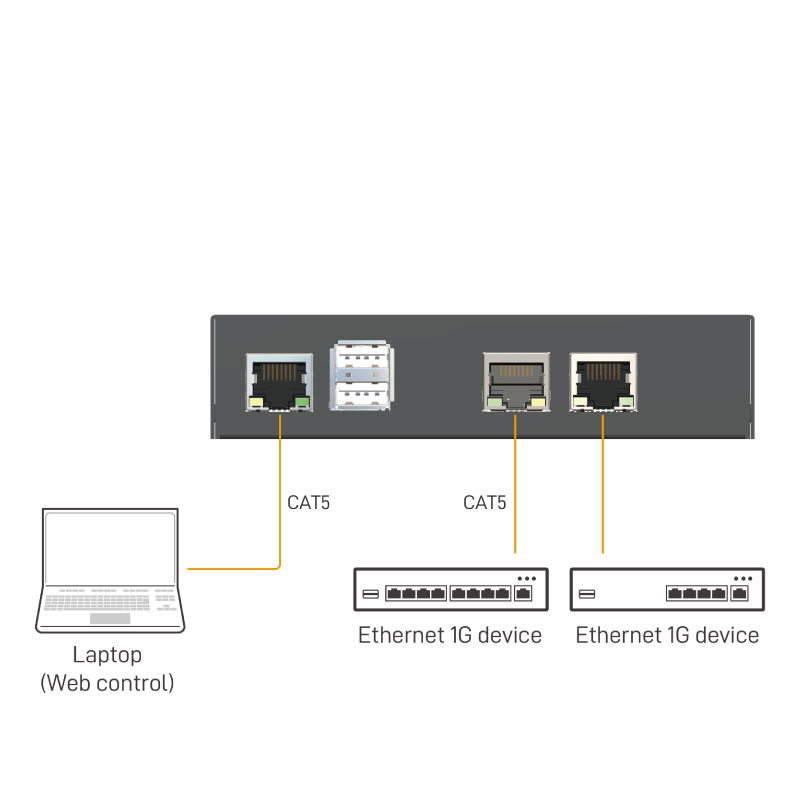

    • Transparent inline Layer-2 bridge between the two emulation ports, plus a dedicated management port with browser console
    • Independent per-direction controls: bandwidth shaping, one-way delay, jitter, random loss, and burst loss using the Gilbert-Elliott model
    • Real-time monitoring with live charts for throughput, latency, jitter, loss, and per-port status
    • Built-in templates for common conditions (LAN, Wi-Fi congestion, mobile, satellite, long-haul WAN), editable from the UI
    • Traffic filters by IP, port, and protocol to target specific flows
    • Interface and bridge management with source/destination role swap
    • On-device packet capture start and stop from the UI
    • IPv4, IPv6, and VLAN pass-through with no addressing changes required on endpoints
    • Quiet desktop form factor with low power consumption
    Overview
    The ETH-01W O1Stream WAN Emulator is a compact, cost-effective network-impairment appliance for validating Audio/Video-over-IP (AoVIP) and WAN-connected products. Built on a dual-port Gigabit bridge with a dedicated management interface, ETH-01W recreates real-world link conditions so teams can characterize performance and resilience before deployment. Through a modern browser-based console, you can apply deterministic, per-direction impairment profiles—bandwidth shaping, one-way delay, jitter, and stateful loss using the Gilbert–Elliott model—while monitoring live traffic and results. The outcome is fast, repeatable testing that reflects congested or lossy networks without changing the DUT software or topology.
    SPECIFICATIONS
    Technical

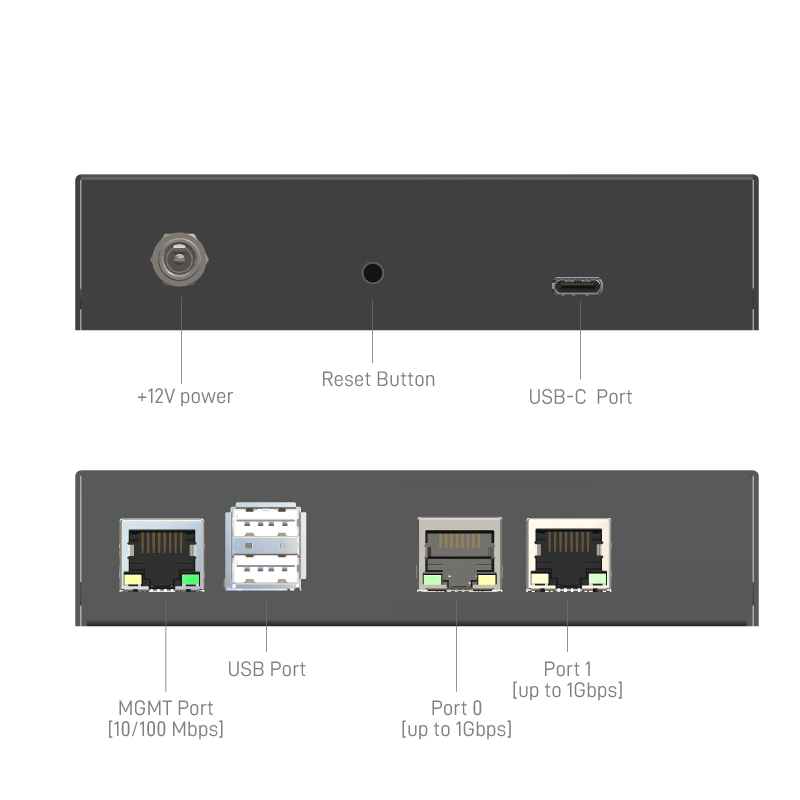

    • I/O connector

    • 3x RJ-45 + 2x USB + 1x USB-C

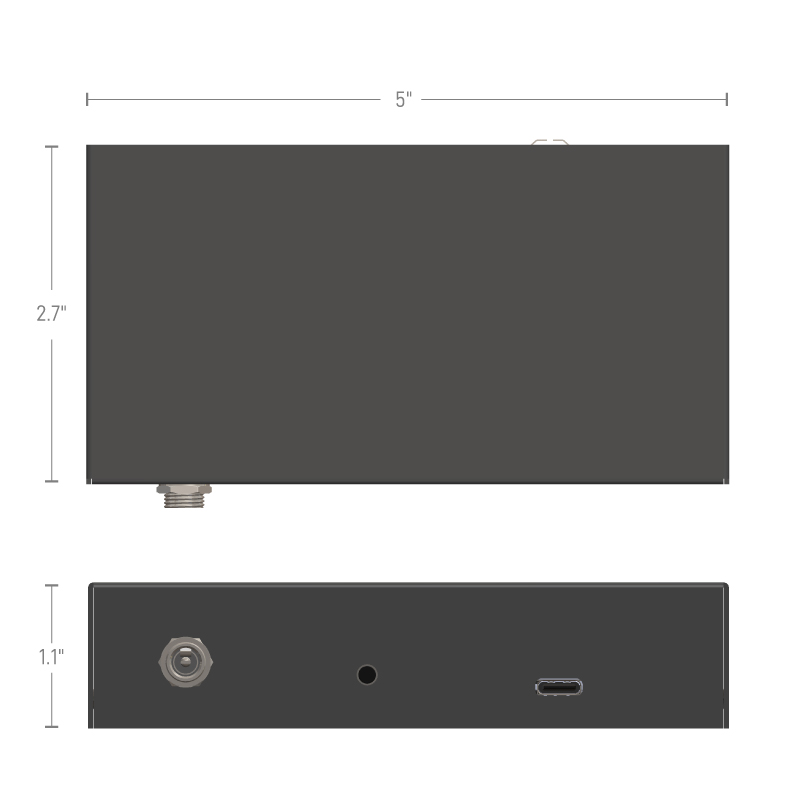

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC

    • Power Consumption

    • 3.5 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 222g (0.4 lb.)

    • Package Weight

    • 493g (1 lb.)

    • Certifications

    • CE, FCC, RoHS
