    SP-5008O1
    1X8 HDMI 2.1/DP 1.4 O1Stream Splitter over Single Cat.X with IR, RS-232, Audio, USB 3.1 & Loopout
    • Supports HDMI 2.1 & HDCP 2.3
    • Supports resolution up to 4K@120 4:4:4
    • Supports USB-C (Alt Mode DP 1.4)
    • Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
    • Extends the transmission over cat.5e cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K@120 4:4:4
    • Supports Multi-Encode & Decode capability (proprietary codecs)
    • Latency: <
    • 1 frame
    • HDCP & CEC Bypass
    • Supports EDID management
    • Pure unaltered uncompressed 7.1ch digital HDMI over cat.5e transmission
    • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
    • Supports bi-directional full frequency IR signal from 20KHz to 60KHz
    • Supports eARC/ARC
    • Full duplex RS-232 control up to 115,200 bps
    • Supports software to configure & upgrade device and to control the switching operation of the various signal types

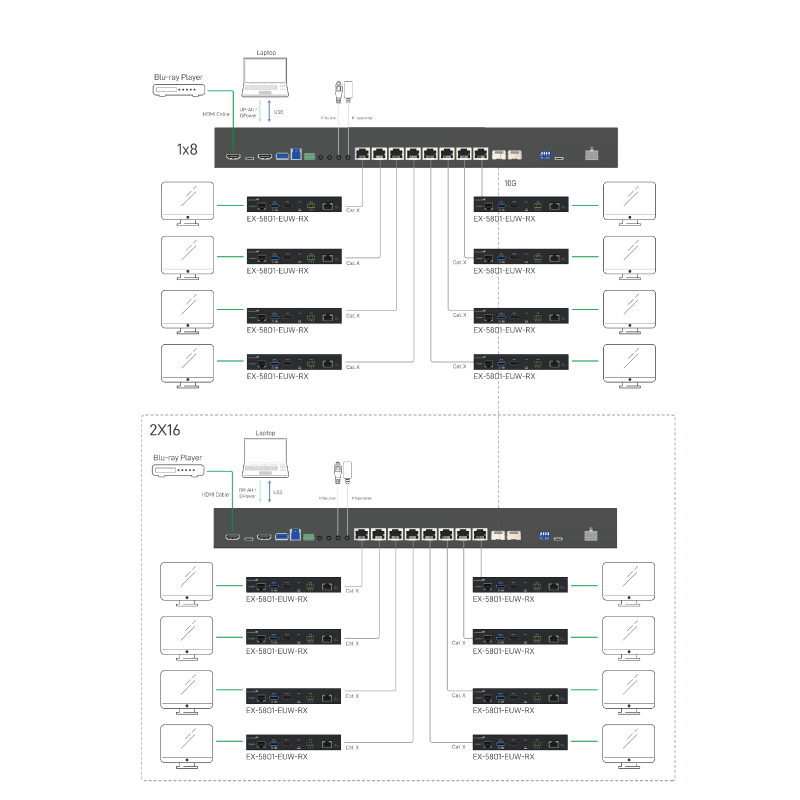

    • Supports device cascading
    • Bi-directional Analog audio path-through
    Overview
    The SP-5008O1 1×8 HDMI 2.1/DP 1.4 O1Stream Splitter over Single Cat.X with IR, RS-232, Audio, USB 3.1, and Loopout provides a cost-effective, advanced HDMI distribution solution, delivering high-definition video and high-quality audio to up to eight remote locations without any loss of quality.
    It supports transmission distances of up to 100 meters (330 feet) over standard copper cabling, delivering Ultra HD 4K@120Hz 4:4:4 performance. Additionally, the SP-5008O1 supports daisy-chain connections via fiber optic cables, allowing multiple units to be linked together for extended distribution.
    The SP-5008O1 is also HDCP compliant and supports IR, RS-232 pass-through, and USB 3.1, providing flexible control and connectivity options.
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.1

    • HDCP Compliance

    • 2.3

    • Video Bandwidth

    • up to FRL 6 (48G)

    • Video Support

    • up to 4K@120 4:4:4

    • HDMI over UTP

    • 100m (330ft) from the HDMI source at Ultra-HD 4K@120 4:4:4

    • Audio Support

    • Surround sound [up to 7.1ch)

    • IR Control

    • Two Way

    • RS232 Control

    • Full Duplex (115,200 bps)

    • Console Management

    • USB-C (UART)

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Rack Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC

    • Power Consumption

    • 24 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Info

    • Dimensions：440 (L) x 44 (H) x 103=2 (D) mm
      Weight：1.5kg

    • Certifications

    • CE, FCC, RoHS
