- Supports HDMI input from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
- Supports IR remote control
- Software control through mini-USB
- OSD control interface
- With clock cleaning function.
- Supports two SDI outputs and one HDMI Loopout
- Input maximum pixel rate : 594MHz
- SDI Output bandwidth 2.970Gpbs
- Supports multiple VESA resolutions
- Deinterlacer supported
- Supports nosie reduction and video enhancement features
- Over / under scanning adjustable
- Video H/V mirror supported
- Active video area adjustment supported
- Stable and independent output signal quality.
- USB firmware upgradable for expanding compatibility
- Wall-mount housing design for easy installation

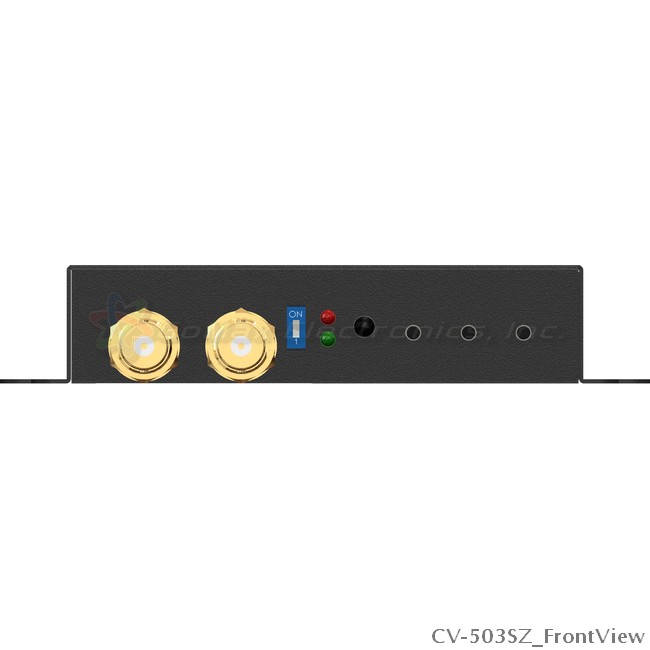

The CV-503SZ HDMI 2.0a to 3G/HD/SD-SDI Scaler Converter provides a professional way to convert HDMI to 3G/HD/SD-SDI in real time. The device can convert audio and video between HDMI and SDI. The model supports clock cleaning function which provides a source-Independent low jitter output.
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2／1.4
-
Max. Data Rate
-
18 Gbps
-
SDI Formats
-
SMPTE 424M-2.97 Gbps／3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
SMPTE 274M-1.485 Gbps／HD-SDI：1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
SMPTE 292M-1.485 Gbps／HD-SDI：1080i at 30 Hz, 720p at 60 Hz。
SMPTE 296M-1.485 Gbps／HD-SDI：720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。
SMPTE 259M-270 Mbps／SD-SDI：NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。
-
HDMI Formats
-
4K UHD Video Standards／2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
UHD Video Standards／1080p at 50/59.94/60 Hz (4:2:2)
HD Video Standards／720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
SD Video Standards／NTSC at 59.94 Hz, PAL at 50 Hz
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
5 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
270g (0.6 lb.)
-
Package Weight
-
520g (1.2 lb.)
-
Certifications
-
CE, FCC, RoHS
