- Support HDMI Deep Color and DVI 1.0 compliant
- HDCP 1.1 compliant
- Supports 7.1-channel DTS-HD Master Audio and Dolby TrueHD high bitrate audio
- Supports Deep Color x.v.Color (xvYCC)
- Extends the transmission range up to 100m (330ft) from the HDMI sources under Full HD resolution (1080p60 36-bit color depth)
- 48-bit color depth
- Supports embedded bi-directional IR pass-through and Consumer Electronics Control (CEC) channel
- Supports Video resolutions up to WQXGA (2560x1600@60Hz or 1920x1200@75Hz) or HDMI video up to 1080p@36 bit RGB/YCbCr
- Supports VESA DDC and Hot-Plug Detect (HPD)
The CV-54B HDMI over Coaxial Extender with Bi-directional IR Pass-through boosts up your HDMI transmission range up to 100m (330ft) in HDTV 1080p format. CV-54B is easy to install and works perfectly with the RGBHV or RG-6 coaxial cables. Coaxial cables are typically used for VGA or component signals, and provide the audio/video professionals with remarkable flexibility. Built with IR pass-through extension, users can control the remote HDMI source devices such as Blu-ray Disc players instantly at the display site. Embedded with bi-directional HDCP mechanism, high definition HDMI content is secured from piracy.

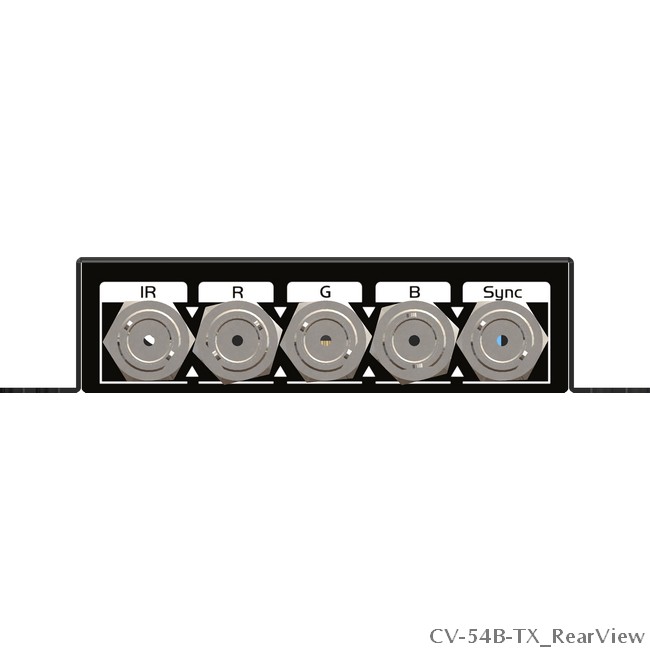

The CV-54B includes two units: transmitting (CV-54B-TX) and receiving (CV-54B-RX) units. The transmitting unit is used to capture the HDMI/DVI, HDCP and IR input signals and carry the signals through five coaxial cables. The receiving unit is responsible for equalizing the transmitted HDMI multimedia data and extracting HDCP and IR data. The transmission range between the sending and receiving units can be up to 100m (330ft) under Full HD (1080p) with 7.1 channel audio. With CV-54B installation, current analog A/V based distribution systems can be upgraded to become pure high quality and future-proof HDMI supported system cost effectively.
-
HDMI Compliance
-
HDCP Compliance
-
DP compliance
-
USB compliance
-
Max. Data Rate
-
Max. Resolution
-
HDR
-
Latency
-
Audio Support
-
CEC control
-
IR Control
-
IR Frequency
-
EDID Selection
-
RS232 Control
-
ESD protection
-
POC
-
B。SDI Output Formats
-
B。HDMI Input Formats
-
B。SDI Speeds Supported
-
B。Video Sampling
-
B。Audio Sampling
-
B。Auto Switching
-
B。Cable Equalization
-
B。Eye-patten Measurements
-
B。Eye-patten Measurements
-
B。RP-198 pathological patterns
-
C。Cable (Belden 1694A) equalization ／ransmission
-
C。Fiber Extension
-
D。Control Interface
-
D。Included Accessories
-
Housing Design
-
Casing Style
-
Power Connection
-
Power Supply
-
Power Consumption
-
Operating Humidity
-
Operation temperature
-
Product Weight
-
Package Weight
-
Certifications
