HDMI 2.0a Installation Gear
    • Supports video resolution* outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits**, 12bits, 16bits
    • Built-in 3 video patterns
    • Both HDMI input and output support up to HDMI 2.0
    • Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input
    • HDCP 1.4 & 2.2 compliant
    • Tests cable quality
    • Provides statistics analysis for cable quality or connection stability
    • Hand-held pocket size
    • Battery powered for portability, it can extend operation time with full load up to 3 hours
    • Rechargeable battery design with short charging time about 3 hours

       The MS-5005BP HDMI 2.0a Installation Gear is a hand-held, pocket size and chargeable battery supported device which can generate popular HDMI signals, detect important HDMI features, and examine cable quality. With the help of MS-5005BP, installer can easily and quickly setup up and setup HDMI equipment in seconds.

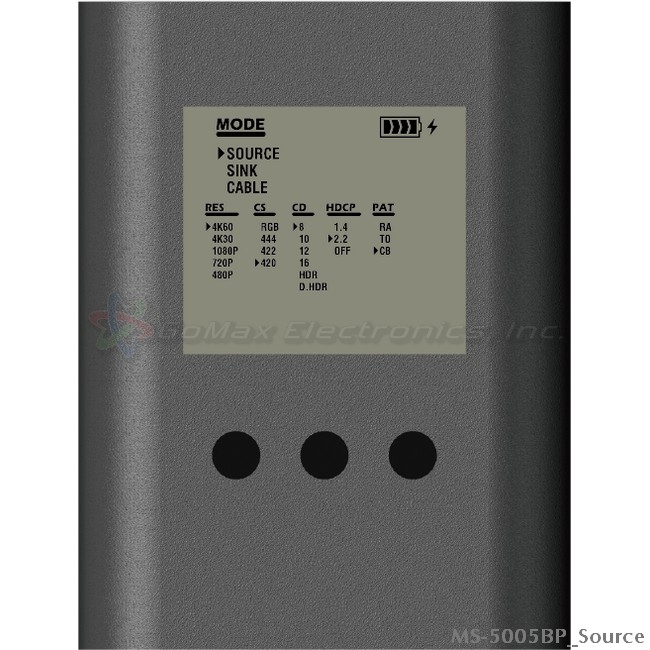

    In 「Source」 mode, MS-5005BP provides reliable video patterns up to HDMI 2.0a 4K@60Hz 444 or 4K HDR, including HDMI 1.4 resolutions such as 1080P and 720P. With adjustable color depth, installer can instantly test the connected display's capability and decide if the display under test is a right choice.
    In 「Sink」 mode, MS-5005BP can be treated as a reliable HDMI signal detector to have fundamental information such as resolution, frame rate, HDCP version. Those important pieces of information can help installers to deal with tedious HDMI compatibility issues with ease.
    In the 「Cable」 mode, this handy gadget can not only verify the wire condition inside the connected HDMI cable, but also provide a cable quality indicator to help installers understand the cable status before doing any installation. Especially for HDMI 2.0, the cable quality matters.

    • HDMI Compliance
    • 2.0

    • HDCP Compliance
    • 2.2/1.4

    • Max. Data Rate
    • Max. Resolution
    • 4K2K@60 (4:4:4—8bits)
      4K2K@60 (4:2:0—16bits)

    • Audio Support
    • Supports 8-channel LPCM audio with selectable sample rates

    • Touch Screen Panel
    • ﹂screen size
    • ﹂brightness
    • ﹂resolution
    • ESD Protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

    • Housing Design
    • Aluminum

    • Casing Style
    • Portable

    • Battery
    • Built in - 2600mAh

    • Power Connection
    • non-locking Barrel

    • Power Supply
    • Power Consumption
    • 5 watts (Max.)

    • Operating Humidity
    • 20-90% RH
      (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    • 0.22kg (7.8 oz.)

    • Package Weight
    • 0.32kg (11.3 oz.)

    • Certifications
    • CE, FCC, RoHS
