    MX-3004MZ2E-CF
    4x2 12G-SDI/HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video Capture Function
    • HDMI 2.0 x4 & SDI 12G x4 Input
    • Full & True 4K60 4:4:4 Support
    • Supports PIP, PBP, POP, full screen & quad-view
    • Resize, position, zoom & pan and blend output video
    • Supports seamless, fade-in-&-out, wipe and dissolve switching

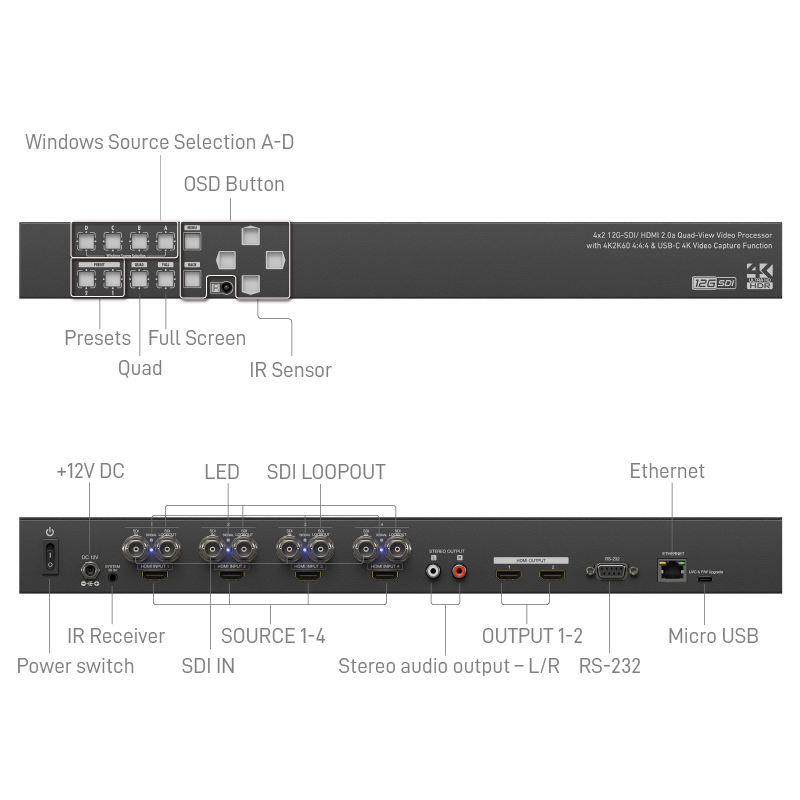

    • Front Panel／OSD／IR／WebGUI／RS–232
    Overview

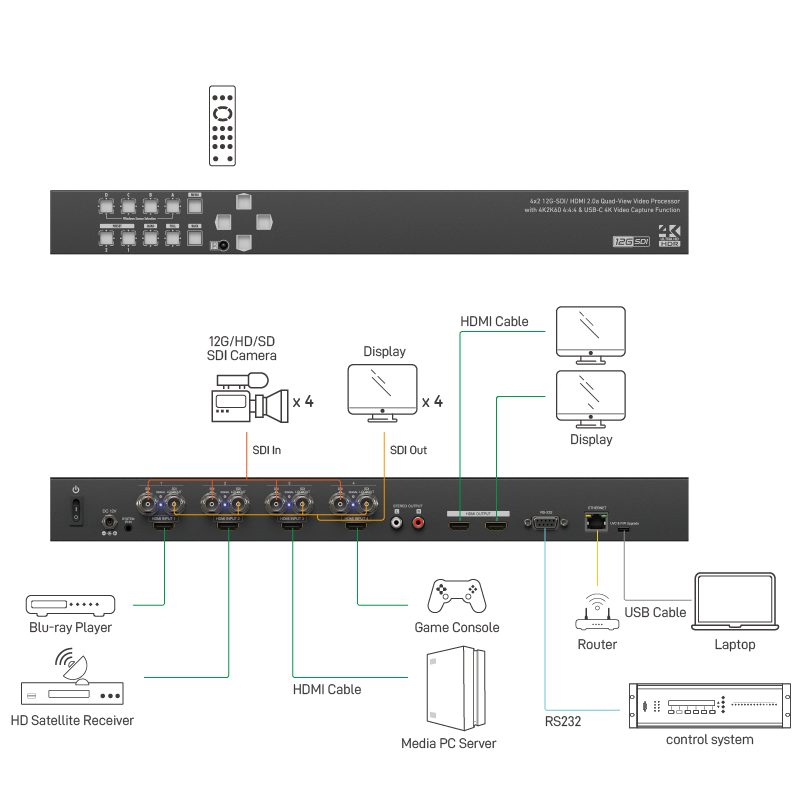

    The MX-3004MZ2E-CF 4x2 12G-SDI/HDMI 2.0a Quad-View Video Processor with 4K2K60 4:4:4 & USB-C 4K Video Capture Function provides the most flexible and cost effective solution in the market to route ultra-high definition video source from any of the four 12G/6G/3G/HD-SDI or UHD HDMI sources to the remote display at the same time. Using powerful built-in USB-C capture & auto scale down features, users can broadcast up to 4K2K@30 video & 2ch audio thru real-time on line software, such as skype. This unique function makes this 4K video processor perfectly work as a live switch for either educational or multiple commercial applications. This solution is also well suited for use in digital signage, conference room presentation systems or other similar settings or applications. With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved presentation quality. In the meantime, the unit can be controlled thru the popular serial port and Ethernet port to provide the most flexible control way to fit into any applications.
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • HDCP Compliance

    • 2.2／1.4

    • SDI Formats

    • SMPTE 2082; 11.88 Gbps／12G-SDI：2160p at 50/59.95/60 Hz。
      SMPTE 2081; 5.94 Gbps／6G-SDI：2160p at 25/29.97/30 Hz。
      SMPTE 424M; 2.97 Gbps／3G-SDI 1080p at 50/59.94/60 Hz (4:2:2)。
      SMPTE 274M; 1.485 Gbps／HD-SDI：1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz。
      SMPTE 296M; 1.485 Gbps／HD-SDI：720p at 23.98/24/25/29.97/30/50/59.94/60 Hz。
      SMPTE 292M; 1.485 Gbps／HD-SDI：1080i at 30 Hz, 720p at 60 Hz。
      SMPTE 259M; 270 Mbps／SD-SDI：NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz。

    • HDMI Formats

    • 4K UHD Video Standards／2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz
      UHD Video Standards／1080p at 50/59.94/60 Hz (4:2:2)
      HD Video Standards／720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
      SD Video Standards／NTSC at 59.94 Hz, PAL at 50 Hz

    • SDI Bitrate

    • 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps

    • Max. Data Rate

    • HDMI - 18 Gbps
      SD8 - 11.88 Gbps

    • Max. Resolution

    • 4K2K@60 (4:4:4—8bits)

    • Ouput Video Support

    • Up to 4K2K@60 (4:4:4 8bits)

    • Input Video Support

    • [12G-SDI] 4K2K @50/59.94/60Hz
      [6G-SDI] 4K2K @23.98/24, 25, 29.97, 30Hz
      [3G-SDI] 1080p50/59.94/60
      [HD-SDI] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30Hz
      [HDMI] up to 4K2K@60 (4:4:4 8bits)

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • Control

    • RS-232/ Ethernet/ IR/ Front panel Control/ Cloud

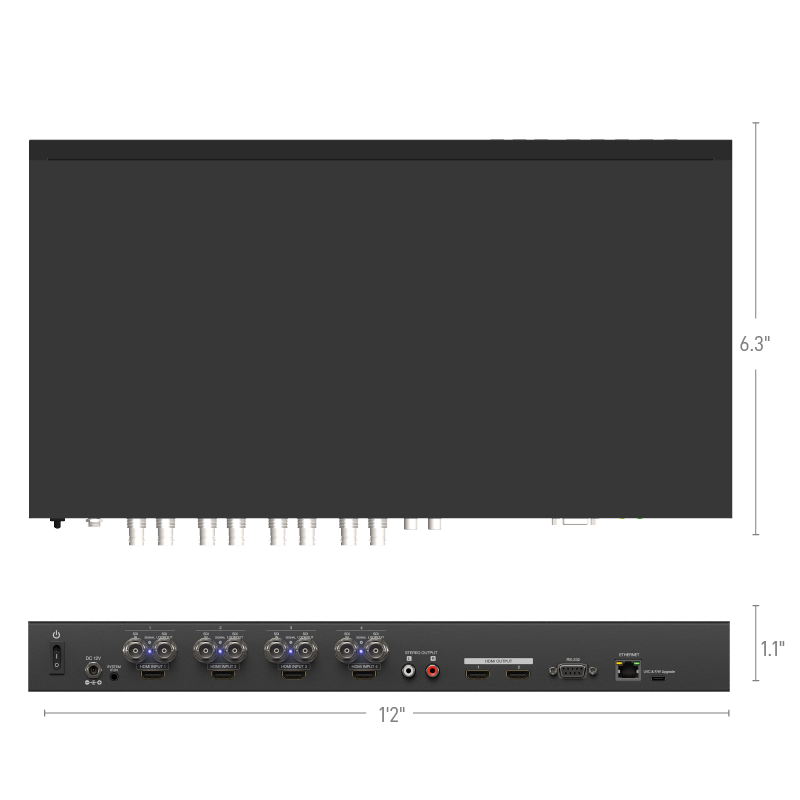

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Rack Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 5A

    • Power Consumption

    • 20 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 2.2kg (5.0 lb.)

    • Package Weight

    • 3.5kg (7.8 lb.)

    • Certifications

    • CE, FCC, RoHS
