EX-58O1
HDMI 2.1 over IP Multicast System with Bi-directional IR, RS-232 & USB 3.1 Support
- Supports HDMI 2.1 & HDCP 2.3
- Supports resolution up to 4K@120 4:4:4
- Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
- Extends the transmission over cat.5e cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K@120 4:4:4
- Supports Multi-Encode & Decode capability (proprietary codecs)
- Latency: <
- 1 frame
- HDCP & CEC Bypass
- Supports EDID management
- Auto equalization
- Pure unaltered uncompressed 7.1ch digital HDMI over cat.5e transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports bi-directional full frequency IR signal from 20KHz to 60KHz
- Supports eARC/ARC
- Full duplex RS-232 control up to 115,200 bps
- Supports seamless switching
- Supports PiP (Picture-in-Picture), PbP (Picture-by-Picture), and PoP (Chroma Key)
- Supports custom scaling to display
- Supports USB 3.1 Gen1 host mode for UVC webcam and USB 3.1 Gen2 UVC device mode
- Integrated port for 1G LAN/ network device
- Cat.5e extension and connection to a 1GbE Ethernet Switch (supported IGMP Snooping)
- Supports software to configure & upgrade device and to control the switching operation of the various signal types
Overview

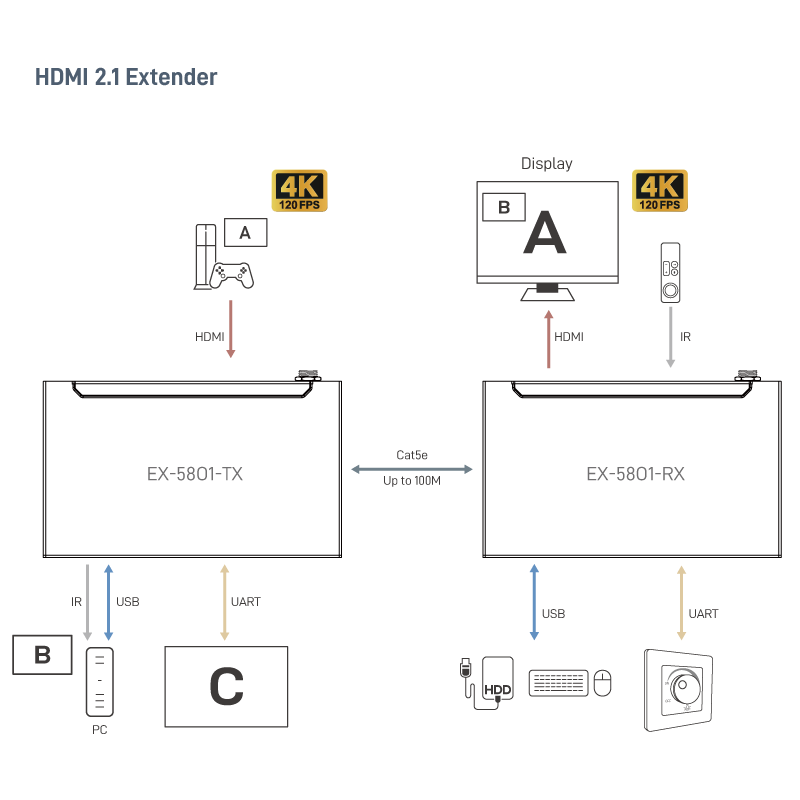

The EX-58O1 HDMI 2.1 over IP Multicast System with Bi-directional IR, RS-232 & USB 3.1 Support extends your video and audio transmission distance up to 100 meters (330 feet) over copper, delivering Ultra-HD 4K@120Hz 4:4:4 format. Users can easily extend Ultra-HD sources from devices like Apple TV, PlayStation, Xbox, PC, or any other HDMI sources to remote displays or monitors, including HDMI or DVI-enabled TVs and LCD PC monitors. Additionally, the EX-58O1 is HDCP compliant and supports IR and RS-232 pass-through and USB 3.1.
With broadcasting management software and a 1 Gigabit Ethernet network switch (with IGMP Snooping support), the EX-58O1 offers a complete Ultra-HD 4K@120Hz 4:4:4 video broadcasting solution for a variety of 4K applications, including healthcare, digital signage, and more. It can transmit Ultra-HD 4K@120Hz 4:4:4 HDMI video over an IP network. The broadcasting format options include Point-to-Point, Point-to-Many, and Multicasting. Multicasting operates via a managed 1 Gigabit switch with 802.1Q VLAN functionality, allowing remote control of multiple devices.
With broadcasting management software and a 1 Gigabit Ethernet network switch (with IGMP Snooping support), the EX-58O1 offers a complete Ultra-HD 4K@120Hz 4:4:4 video broadcasting solution for a variety of 4K applications, including healthcare, digital signage, and more. It can transmit Ultra-HD 4K@120Hz 4:4:4 HDMI video over an IP network. The broadcasting format options include Point-to-Point, Point-to-Many, and Multicasting. Multicasting operates via a managed 1 Gigabit switch with 802.1Q VLAN functionality, allowing remote control of multiple devices.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.1
-
HDCP Compliance
-
2.3
-
Video Bandwidth
-
up to FRL 5 (40G)
-
Video Support
-
up to 4K@120 4:4:4
-
HDMI over UTP
-
4K@120 4:4:4 100m (330ft) [CAT.5E]
-
Audio Support
-
Surround sound [up to 7.1ch)
-
IR Control
-
Two Way
-
RS232 Control
-
Full Duplex (115,200 bps)
-
Console Management
-
micro-USB B
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 1A
-
Power Consumption
-
12 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Info
-
Dimensions：13.2 (L) x 7.5 (W) x 2.0 (H) cm
Weight：0.5kg
-
Certifications
-
CE, FCC, RoHS
