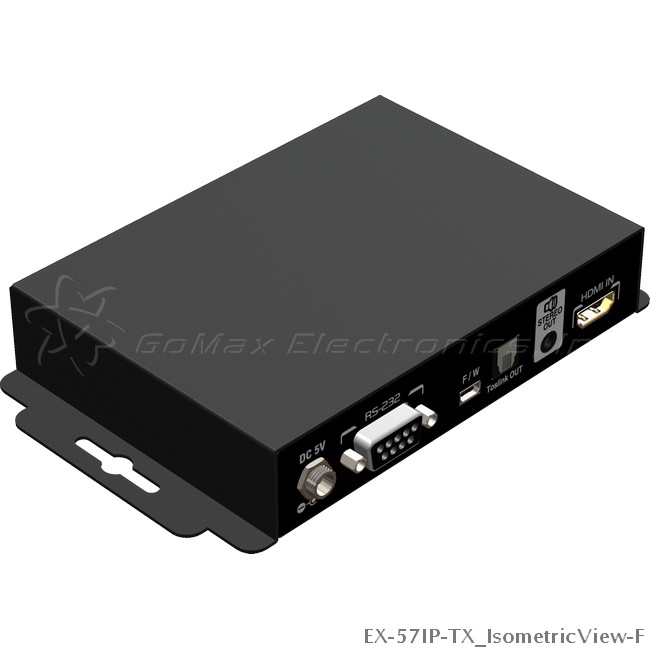

    EX-57IP
    HDMI over IP Multicast System
    • Supports resolution up to 1080p60
    • HDMI v1.3 compliant
    • HDCP 1.4 compliant
    • Supports audio extraction via stereo & toslink on both transmitter and receiver
    • Sample rates of 32~192KHz and sample sizes of 16~24 bits
    • Transmits video and audio signal over a network
    • Supports HDMI loop through
    • Easy distribute multi scalable Full HD video to different locations based on IP network
    • Supports full frequency IR signal pass-through from 20KHz to 60KHz
    • Full Duplex RS-232 control up to 115,200 bps through connector Up to 1,063 Groups Multi-Casting
    • Encoder: MPEG4 AVC part10 & MPEG audio layer (1/2/3) & Planar: 4:2:0 (YUV)
    • Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST Ethernet: 10/100 BASE-T RJ45
    • Supports Streaming Bit rate up to 15Mbps (+-10%)
    • Enable Protocol compatible with any software player (such as VLC® or others)
    • Latency: 720P60: 190~240ms / 1080P60: 380~430ms.
    • Wall mounting housing design for easy and robust installation
    Overview

        The EX-57IP HDMI over IP Multicast System boosts up your video/audio transmission distance up to 100m(330ft) in HDTV 1080p format. With cost effective Ethernet cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides EX-57IP is HDCP compliant, and supports IR and RS-232 pass-through path.
        With broadcasting management software and Gigabit Ethernet network switch (supported IGMP), EX-57IP is a complete HD video broadcasting solution for digital signage. It can transmit Full HD 1080p HDMI video broadcasting over IP network. The broadcasting format can be Point to Point, Point to Many, and Multi-Casting. Multi-casting is based on Managed Gigabit Switch with 802.1Q VLAN function which provides control remotely, so multi video and source allowed and supported.

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • 1.3

    • HDCP Compliance
    • 1.4

    • Max. Distance
    • Up to 4Kp60@120m (Cat 5e/6)

    • Max. Data Rate
    • 500 Mbps

    • Max. Resolution
    • 1080p@60 (4:2:2—12bits)
      1080p@60 (4:4:4—8bits)

    • HDR
    • 10-bit / 12-bit HDR

    • Latency
    • 2 frames (33ms) Max.

    • Audio Support
    • L/R audio formats pass-through

    • IR Control
    • One Way

    • IR Frequency
    • 38—56 KHZ

    • RS232 Control
    • Full Duplex (115,200 bps)

    • ESD protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design
    • Metal

    • Casing Style
    • Wall Mountable

    • Power Connection
    • Interlocking Barrel

    • Power Supply
    • 5V DC, 2A

    • Power Consumption
    • 5 watts (Max.)

    • Operating Humidity
    • 20-90% RH (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    • ⎖ TX : 407g (0.8 lb.)
      ⎖ RX : 407g (0.8 lb.)

    • Package Weight
    • ⎖ TX : 732g (1.6 lb.)
      ⎖ RX : 732g (1.6 lb.)

    • Certifications
    • CE, FCC, RoHS
