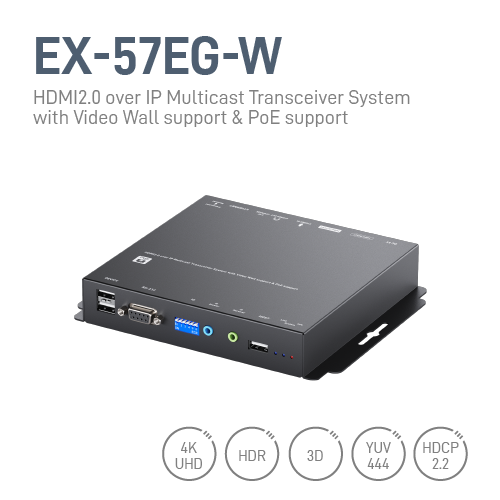

- HDMI2.0 over IP Multicast Transceiver System with Video Wall support & PoE support
Supports HDMI output up to 4K2K@30 RGB
Supports HDMI input up to 4K2K@60 4:4:4 8bits
Supports High Dynamic Range (HDR)*
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports PoE function
Can be configured as a transmitter or receiver
Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch
One to one, one to many & multi-casting broadcasting architecture
Each transmitter can be theoretically multicast up to an unlimited number of displays in video wall applications or unlimited displays in multicast applications
Supports full frequency IR signal from 20KHz to 60KHz
Bi-directional IR path
Full Duplex RS-232 control up to 115,200 bps through connector Up to 1,023 Groups Multi-Casting
Easy Dip Switch matching for multi-casting group configuration
Latency: 1080p60Hz: 23ms
Supports Video Wall function
Supports 180 and 270 clockwise image rotation
Supports USB2.0
Wall mounting housing design for easy and robust installation
- 4K-HDR 8x8 HDBaseT Lite matrix with PoC
Supports 4K2K@60 4:4:4 8bits
HDMI 2.0a compliant
Supports HDR, which is 4K2K@60 4:2:0 10bits
Extends HDMI signal up to 60m (198ft) from the HDMI source at Full HD 1080p 36-bit, 35m (114ft) at 4K2K@60 444 (4K-HDR Technology)
Supports PoC(Power over Cable) which can power RX unit from TX side with power supply
Supports two HDMI loopouts
Supports audio extraction via stereo audio L/R & S/PDIF from HDMI loopouts
HDCP1.4 & HDCP2.2 compliant
Supports resolution downscaling from 4K2K to 1080P
Bi-directional IR pass-though
Allows controlling local HDMI sources or display through control path
Allows controlling matrix switcher from IR remote
Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
Allows any source to be displayed on multiple displays at the same time
Allows any HDMI display to view any HDMI source at any time
Supports 7.1 channel digital audio
Supports default HDMI EDID and learns the EDID of displays to matrix switcher
The matrix switcher can switch every output channels from any HDMI inputs by Push button, IR remote control, RS-232, IP control, web-interface control and cloud, control 4 & Alexsa Echo control.
Easy installation with rack-mounting
Fast response time – 4~6 seconds for channel switch
- HDMI and 3G-SDI Cross and Scaler Converter with 3.5
Input Video support
。[3G] 1080p @50/59.94/60Hz (4:4:4)
。[HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz
。[SD] NTSC @59.94Hz, PAL @50Hz
Input bandwidth 2.970Gbps
Output maximum pixel rate: 165MHz
Multiple VESA standards support for output video resolutions
Deinterlacing supported
Built-in test patterns
HDMI and SDI cross conversion :
。Simultaneous conversion between SDI to HDMI when HDMI to SDI
。Simultaneous conversion between SDI to SDI when HDMI to HDMI
。HDMI to SDI and HDMI
。SDI to SDI and HDMI
OSD control interface
Push button control
Supports eye diagram scanning
Supports audio level bars
Supports cable length indicator
Supports output test patterns
Supports audio embedding and extraction via stereo
Supports noise reduction and video enhancement features
Video H/V mirror supported
Active video area adjustment supported
USB firmware upgradable for expanded compatibility
- USB 3.0 Full HD Video Capture Device with HDMI 2.0a loopout & Audio
Supports UVC1.0
HDMI video and audio streams over USB 3.0
Supports video resolution up to 1080p 60Hz (Video stream over USB 3.0)
Supports HDMI input & loopout from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
Supports resolution downscaling from 4K2K to 1080P
Supports line-in mix with HDMI audio
Supports HDMI audio extraction
Auto-detection on video format to ensure plug-play operations
Recording Video Format: H.264 (Software Compression)
Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
Compatible with most 3rd party software such as OBS Studio and AMCap
Supports USB 3.0 (MJPG/YUY2) and USB 2.0 (MJPG)
Low Lattency
System Requirements (Recommanded)
- Windows® 7(SP1) / Windows 8.1 / Windows 10
- PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
- Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher
- 4GB RAM or higher
- 4K 1x4 Video Wall Processor with DP 1.2 input
Four HDMI outputs from 640x480 to 1920x1200
Supports HDMI and DisplayPort input from 640x480 to 4K2K@60 (YUV 4:4:4), interlaced or progressive
HDCP compliant
DisplayPort 1.2a & HDMI 2.0a compliant
Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
Several image parameters and layouts can be saved in computers and can be loaded for later use
Firmware upgradable for new features and technology enhancements
The video wall processor can control by USB, push button, Ethernet, IR remote control and cloud control*
Resize, position, zoom for each HDMI output video
User-selectable output settings, up to 1920x1200
Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
Supports independent input rotation at the resolution up to 1080p 4K2K60 (YUV 4:4:4) can be divided and displayed onto four 1080p60 TV (2x2 layout only)
Supports individual propagation delay on each display to have the best visual perception
-
