Overview

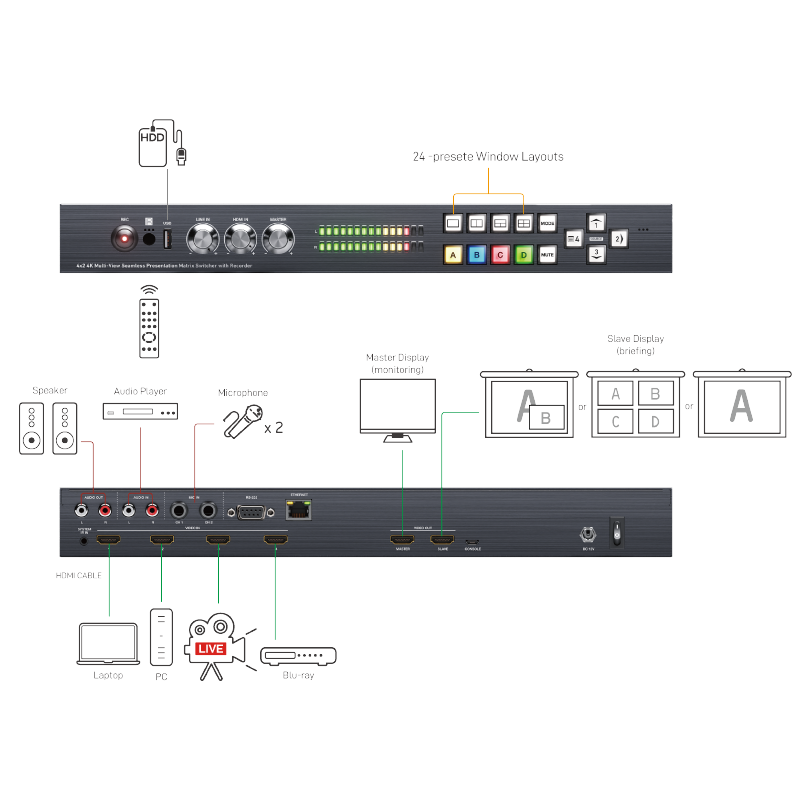

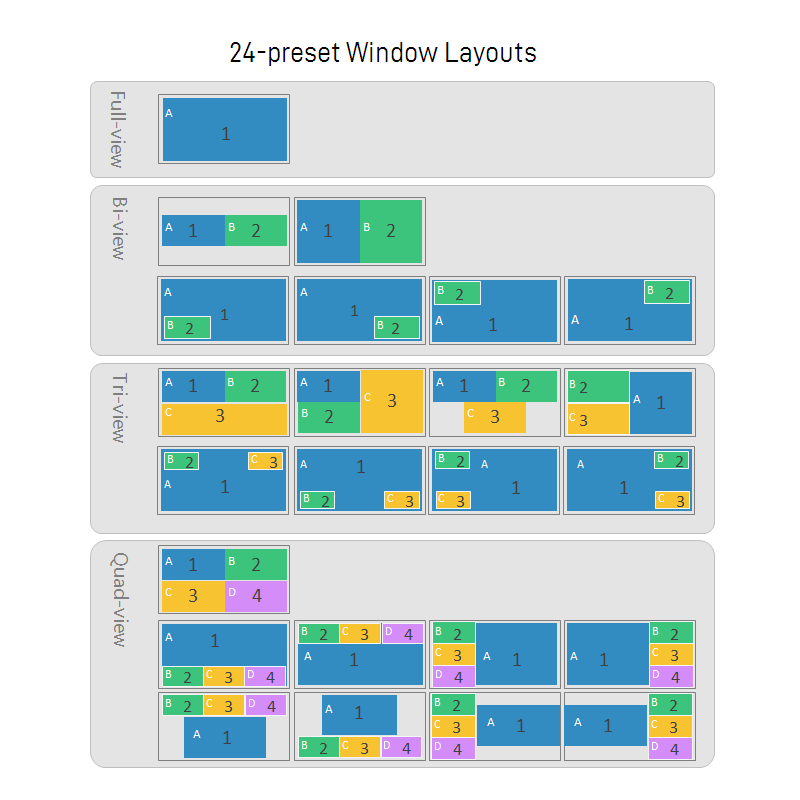

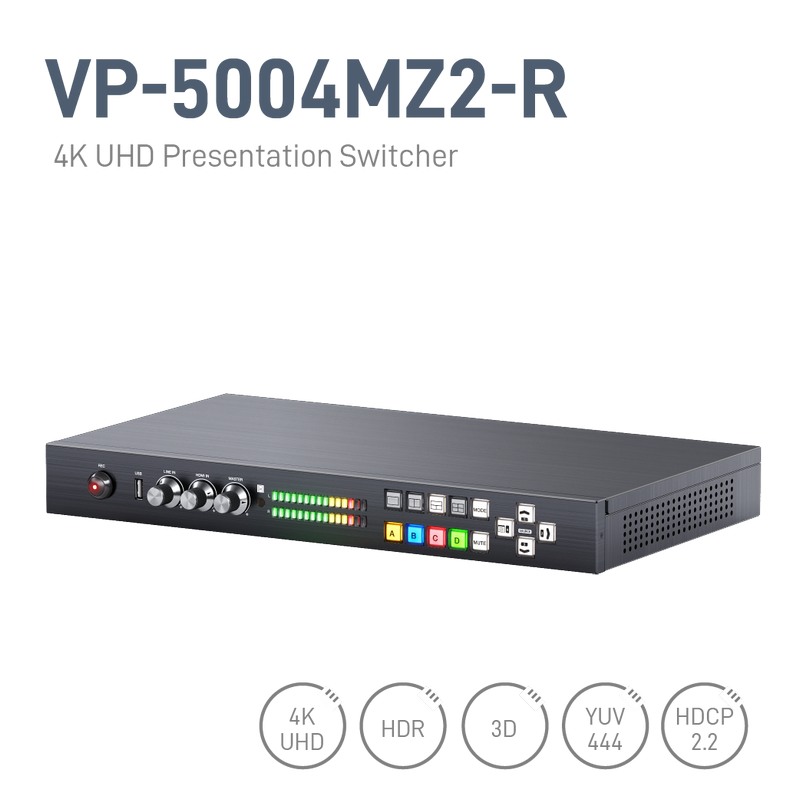

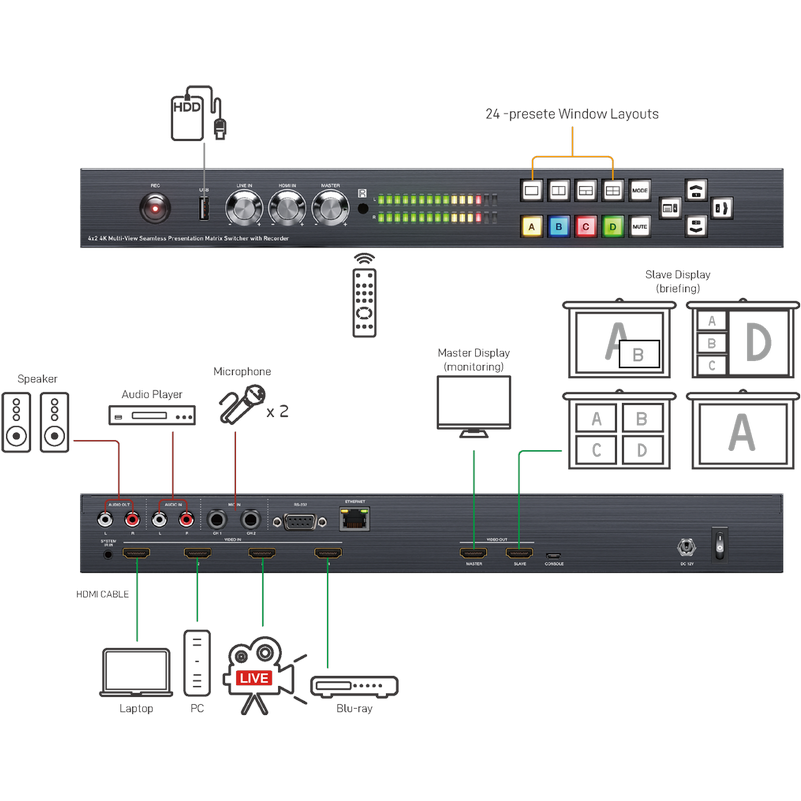

VP-5004MZ2-R 4K Multiviewer is the latest product in GoMax’s range of 4K enabled products. The Presentation Switcher can display up to four video windows simultaneously on dual display via twenty-four different fixed layouts, which can be recalled to present your content in a variety of combinations. User can monitor all different contents on Monitoring display (Master video out) and assign up to two video windows to be shown onto Briefing display (Slave video out). This could vary from a straight forward Quad split, Picture-In-Picture, Triple, Side-By-Side, Full screen or something more complex with multiple layers.
The VP-5004MZ2-R has four inputs – Supporting resolutions up to 3840x2160@60 on HDMI.
It offers two scaled HDMI outputs capable of supporting resolutions up to 3840x2160@30, one is Master video out for monitoring and another one is Slave video out for briefing in mirror mode or extended mode.
The VP-5004MZ2-R can record all the contents from Slave Video Out (briefing display) and mix all the audio on any selected HDMI input and microphone input. An independent stereo analog audio in is provided to user that can be embedded into Master video out.
Control is via a RS232, Ethernet, Infrared remote or from the front panel buttons. The VP-5004MZ2-R is an extremely flexible Multiviewer and a very capable Presentation Switcher making it a good fit for many different user scenarios.
The VP-5004MZ2-R has four inputs – Supporting resolutions up to 3840x2160@60 on HDMI.
It offers two scaled HDMI outputs capable of supporting resolutions up to 3840x2160@30, one is Master video out for monitoring and another one is Slave video out for briefing in mirror mode or extended mode.
The VP-5004MZ2-R can record all the contents from Slave Video Out (briefing display) and mix all the audio on any selected HDMI input and microphone input. An independent stereo analog audio in is provided to user that can be embedded into Master video out.
Control is via a RS232, Ethernet, Infrared remote or from the front panel buttons. The VP-5004MZ2-R is an extremely flexible Multiviewer and a very capable Presentation Switcher making it a good fit for many different user scenarios.
SPECIFICATIONS
Technical
-
HDMI Compliance
-
2.0
-
HDCP Compliance
-
2.2/1.4
-
Max. Data Rate
-
18 Gbps
-
Max. Resolution
-
4K2K@60 (4:4:4—8bits)
4K2K@60 (4:2:0—10bits)
-
Audio Support
-
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Rack Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
12V DC, 7.5A
-
Power Consumption
-
65 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
2.1kg (5.7 lb.)
-
Package Weight
-
3.9kg (8.6 lb.)
-
Certifications
-
CE, FCC, RoHS
