    MX-5008MD
    The MX-5008MD 8x3 HDMI 2.0 Multi-view Seamless Presentation Switcher with USB-C 4K Video Capture Function & 100W Power Delivery offers the most flexible and cost-effective solution
    • HDMI2.0 compliant
    • HDCP 1.4/2.2 compliant
    • Supports HDR for both inputs or outputs and HDR to SDR conversion
    • 6x HDMI 2.0 & 2x USB-C inputs
    • 3x HDMI 2.0 outputs support multi-view or full-view
    • Resolutions support up to 4K2K@60Hz (4:4:4 8bits)
    • Multi-view supports limited multiple layouts for different field applications
    • Supports seamless, wipe, and dissolve switching on full view outputs
    • Supports 4K real-time waveform monitor, vector scope, histogram
    • Supports SMPTE and most popular VESA formats
    • Supports USB Power Delivery up to 100W
    • Compatible with USB Power Delivery 3.0 (PD 3.0) specification (100W max) on USB-C input 1
    • Software control through USB-C and Ethernet
    • Supports IR remote control
    • Supports analog stereo thru standard phone jack connectors
    • Firmware upgradable through USB port to support of new features and technology enhancements
    • Supports USB-C 4K Video Capture
      。HDMI video and audio streams over USB 3.1 Type-C Gen 1
      。Supports UVC1.0
      。Supports video resolution up to 4K2K@30/1080P@1201
      。Supports deinterlace & scaler
      。Recording Video Format: Software Compression
      。Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
      。Compatible with most 3rd party software such as OBS Studio and AMCap
      。Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
      。Supports USB-C reversible
      。Low Latency
    Overview

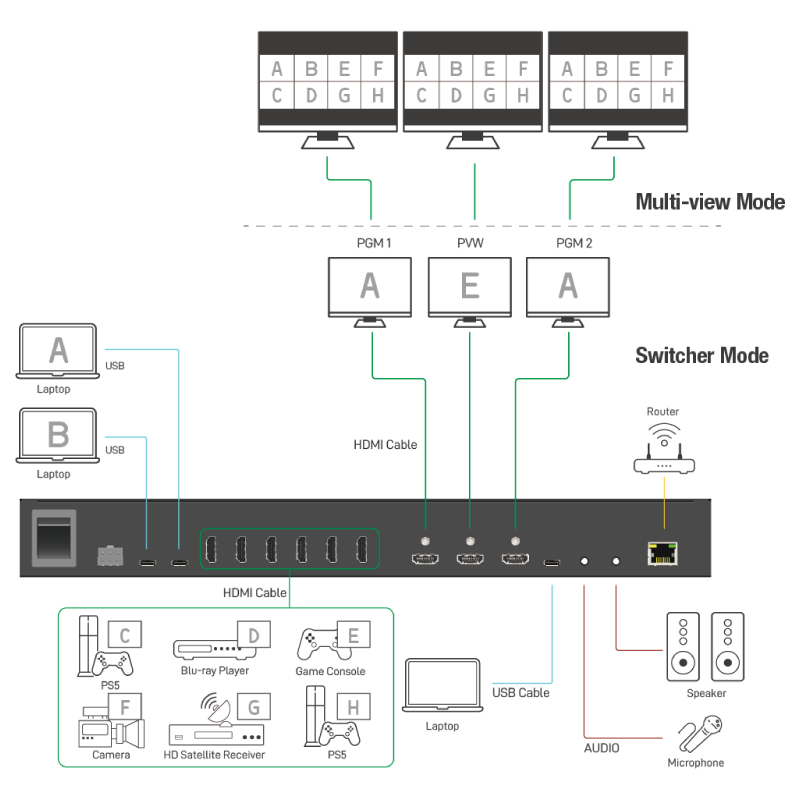

    The MX-5008MD 8x3 HDMI 2.0 Multi-view Seamless Presentation Switcher with USB-C 4K Video Capture Function & 100W Power Delivery offers the most flexible and cost-effective solution on the market for routing ultra-high definition video sources from any of the 6 UHD HDMI and 2 USB-C sources to the remote display simultaneously. Using its powerful built-in USB-C capture & auto scale-down features, users can broadcast up to 4K2K@30 video & 2ch audio in real-time through online software like skype. This unique capability makes this 4K presentation switcher perfectly work as a live switch for either educational or multiple commercial applications. It is also well suited for use in digital signage, conference room presentation systems, and similar settings or applications.
    Moreover, the MX-5008MD features USB Power Delivery 3.0 (PD 3.0) technology, allowing you to charge compatible devices such as laptops and smartphones with USB-C and Thunderbolt™ (must support USB-C Power Delivery). With up to 4K2K60 4:4:4 output resolution, users can display the mixed video with improved presentation quality. The unit can be conveniently controlled through the USB-C port and Ethernet port, providing the most flexible control options to adapt to various applications.
    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 2.0

    • HDCP Compliance

    • 2.2／1.4

    • USB Compliance

    • USB-A 3.1 gen 1

    • Max. Data Rate

    • 18 Gbps

    • Max. Resolution

    • 4K2K@60 (4:4:4—8bits)
      4K2K@60 (4:2:0—10bits)

    • Recording Video Format

    • YUY2 (USB3.0), MJPG (USB2.0/3.0)

    • Ouput Video Support

    • Up to 4K2K@60 (4:4:4 8bits)

    • Input Video Support

    • Up to 4K2K@60 (4:4:4 8bits)

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • Operating System Compatibility

    • Windows 7, 8, 10, Mac OS X 10.9 or above, Linux

    • 3rd-Party Software Compatibility

    • OBS Studio (Windows, Linux)／AMCap (Windows)
      Potplayer (Windows)／Skype (Windows, OS X)
      Hangout (Windows)／TeamViewer (Windows)

    • Hardware Requirements

    • Desktop：Intel Core i5-3400+NVIDIA GTX660 or higher
      Notebook：Intel Core i7-4810MQ+NVIDIA GTX870M or higher+4GB RAM or higher

    • Control

    • RS-232/ Ethernet/ IR/ Front panel Control/ Cloud

    • ESD Protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Rack Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 12V DC, 5A

    • Power Consumption

    • 20 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 2.2kg

    • Package Weight

    • 3.5kg

    • Certifications

    • CE, FCC, RoHS
