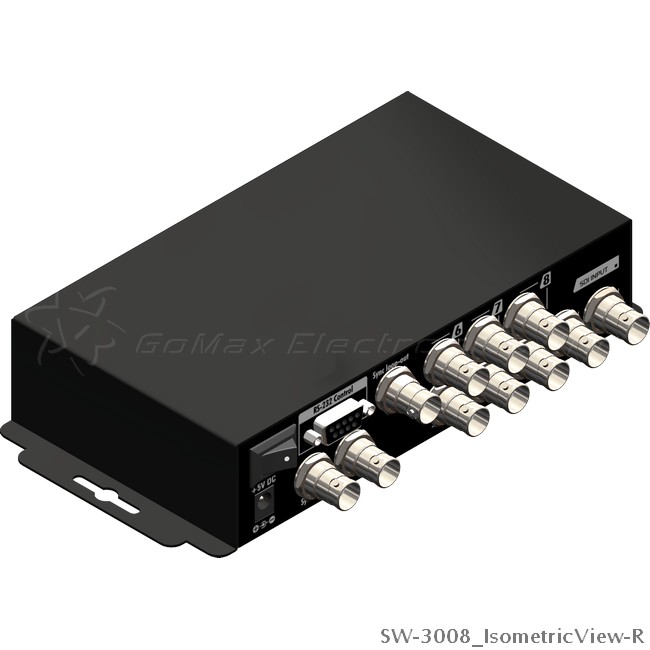

SW-3008
8x1 HD/SD-SDI switch
  • HD/SD-SDI Switch
  • Up to 8 equalized & re-timing SDI inputs

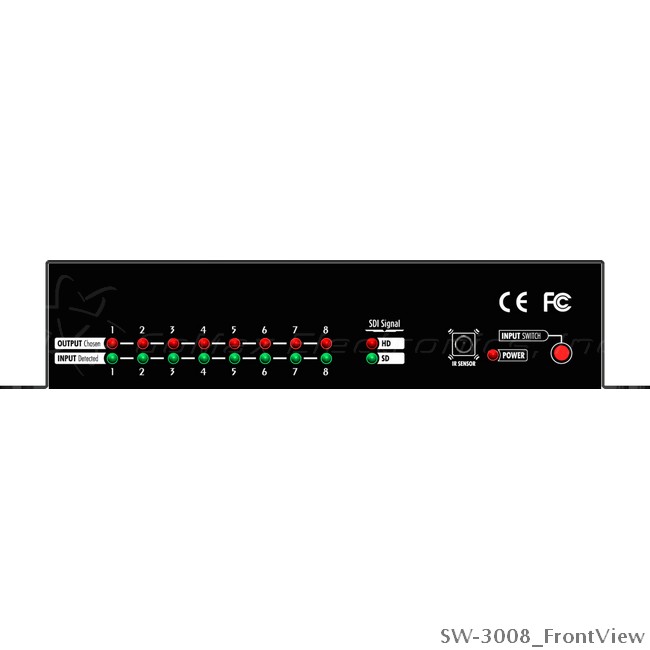

  • Dual Color indication LED of HD/SD of the output SDI
  • Automatic detection of the SDI Input
  • Synchronizes input/output (switch after vertical sync)
  • Provides the equalized and reclocked* transmission path up to 300m (1000ft) at SD-SDI or 150m (500ft) at HD-SDI

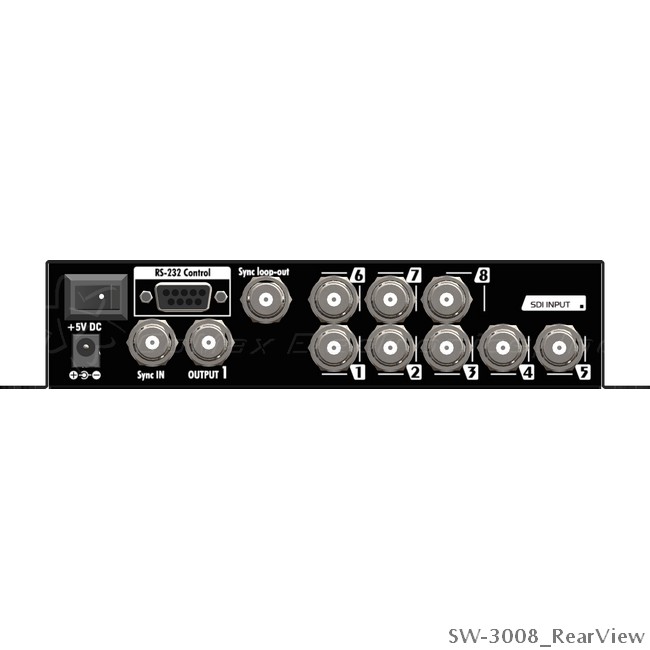

  • Multiple control by RS-232, IR remote, and push button
總覽

This SW-3008 receives, equalizes, and reclocks up to 8 SDI inputs, perfectly switches the desired input to SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. SW-3008 offers the most convenient and cost effective means for swift switch and duplication of high quality SDI in the market.

產品規格
Technical
  • HDMI Compliance
  • HDCP Compliance
  • DP compliance
  • USB compliance
  • Max. Data Rate
  • Max. Resolution
  • HDR
  • Latency
  • Audio Support
  • CEC control
  • IR Control
  • IR Frequency
  • EDID Selection
  • RS232 Control
  • ESD protection
  • POC
  • B。SDI Output Formats
  • B。HDMI Input Formats
  • B。SDI Speeds Supported
  • B。Video Sampling
  • B。Audio Sampling
  • B。Auto Switching
  • B。Cable Equalization
  • B。Eye-patten Measurements
  • B。Eye-patten Measurements
  • B。RP-198 pathological patterns
  • C。Cable (Belden 1694A) equalization /ransmission
  • C。Fiber Extension
  • D。Control Interface
  • D。Included Accessories
Mechanical
  • Housing Design
  • Casing Style
  • Power Connection
  • Power Supply
  • Power Consumption
  • Operating Humidity
  • Operation temperature
  • Product Weight
  • Package Weight
  • Certifications
