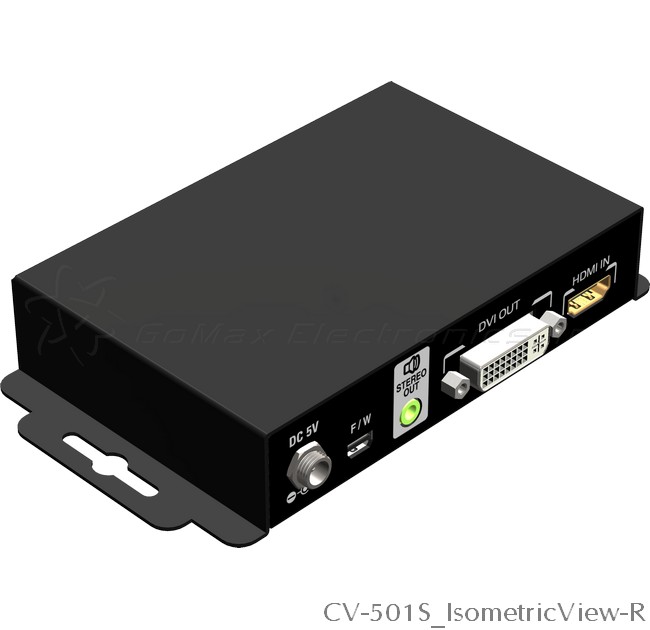

CV-501S
HDMI to DVI & audio Scaler Converter
  • HDMI 1.2 compliant
  • HDCP compliant
  • NOTE:Conversion from HDCP-protected signal is NOT supported.
  • DVI 1.0 compliant
  • IR remote control
  • Remote control via mini-USB
  • OSD control interface
  • Maximum pixel rate : 165MHz
  • Deinterlacer supported
  • Supports nosie reduction and video enhancement features
  • Video enhancement support
  • Over / Under scanning adjustable
  • Video H/V mirror supported
  • Active video area adjustment supported
  • Multiple VESA output resolutions available
  • USB firmware upgradable for expanding compatibility
  • Wall-mount housing design for easy installation
總覽

The CV-501S HDMI to DVI & audio Scaler Converter offers an easy and instant approach for converting digital HDMI to digital video (DVI-D) with either digital audio (S/PDIF) or analog stereo audio. With this module, HDMI based devices such as Blu-ray Disc players, PS3, DVD players, camcorders, or set-top boxes can readily connect to your PC LCD and PC speakers. This device also enables users to connect full digital video and audio to DVI enabled monitor and S/PDIF equipped audio receiver and amplifier, and make the highest compatibility to your home theater devices.

產品規格
Technical
  • HDMI Compliance
  • 1.2

  • DVI Compliance
  • 1.1

  • HDCP Compliance
  • 1.4

  • Max. Data Rate
  • 4.95 Gbps

  • Max. Resolution
  • 1080p@60 (4:2:2—12bits)
    1080p@60 (4:4:4—8bits)

  • Audio Support
  • Stereo PCM

  • ESD Protection
  • 8 KV—Contact Discharge
    15KV—Air Discharge

Mechanical
  • Housing Design
  • Metal

  • Casing Style
  • Wall Mountable

  • Power Connection
  • Interlocking Barrel

  • Power Supply
  • 5V DC, 2A

  • Power Consumption
  • 8 watts (Max.)

  • Operating Humidity
  • 20-90% RH (no condensation)

  • Operation temperature
  • 0~40°C (32~104°F)

  • Product Weight
  • 260g (0.6 lb.)

  • Package Weight
  • 510g (1.1 lb.)

  • Certifications
  • CE, FCC, RoHS
