    AVP-57FC-U
    HDMI 2.0 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB 2.0 & Video Wall Support
    • Supports HDMI 2.0 & HDCP 2.2
    • Supports HDR and up to 4K@60 4:4:4 Extends the transmission over cat.6A cable up to 100m (330ft) from the HDMI source at Ultra-HD 4K2K@60 4:4:4
    • Extends the transmission over multi-mode optic cable up to 300m (990ft) (OM3)/400m (1320ft) (OM4)
    • Lite compress with less than 100us latency for 4K2K@60 4:4:4
    • HDCP & CEC Bypass
    • Supports EDID management
    • Can be configured as a full duplex transmitter and receiver when 4K@60 4:4:4
    • Slide switch to select transmission over 10G copper or SFP
    • Auto equalization
    • Pure unaltered uncompressed 7.1ch digital HDMI over cat.6A/fiber transmission
    • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
    • Supports bi-directional full frequency IR signal from 20KHz to 60KHz
    • Bi-directional Analog audio path-through
    • Full duplex RS-232 control up to 115,200 bps
    • Integrated port for 1G LAN/ network device
    • Cat.6A/fiber extension and connection to a 10GbE Ethernet Switch (supported IGMP Snooping)
    • Supports software to configure & upgrade device and to control the switching operation of the various signal types
    • Supports seamless switching
    • Supports Video Wall* & Multi-view function
    • Supports custom scaling to display
    • Supports USB2.0
    Overview

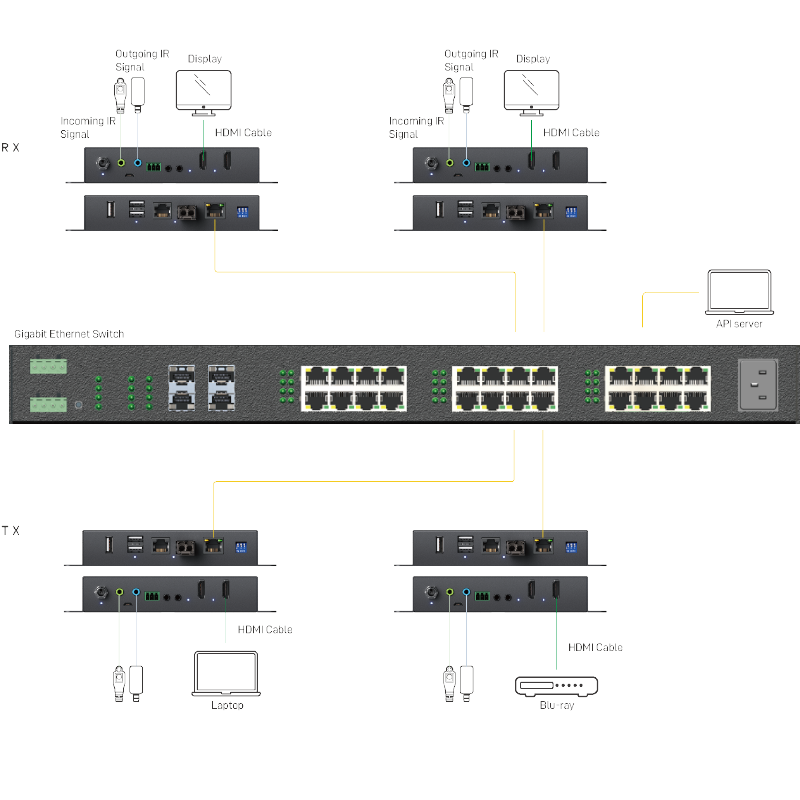

    The AVP-57FC-U HDMI 2.0 over IP Multicast Transceiver System with Bi-directional IR, RS-232, Audio Extender/Extractor, USB 2.0 & Video Wall Support boosts up your video/audio transmission distance up to 100m(330ft)**[over copper] or 300m (990ft) (OM3) / 400m (1320ft) (OM4)[over fiber] in Ultra-HD 4K2K@60(4:4:4) format. Users can readily extend Ultra-HD sources from Blu-ray Disc player, PS4, PC, and any other HDMI sources to distant display / monitor, including HDMI or DVI enabled TV sets or LCD PC monitors. Besides AVP-57FC-U is HDCP compliant, moreover it supports IR & RS-232 pass-through, audio extender/extractor, video wall and multi-view. With broadcasting management software and 10 Gigabit Ethernet network switch (supported IGMP Snooping), AVP-57FC-U is a complete Ultra-HD 4K2K@60(4:4:4) video broadcasting solution for many 4K requirement applications, such as medical care, digital signage etc. It can transmit Ultra-HD 4K2K@60(4:4:4) HDMI video broadcasting over IP network. The broadcasting format can be Point to Point, Point to Many, and Multi-Casting. Multi-casting is based on Managed 10 Gigabit Switch with 802.1Q VLAN function which provides control remotely with multi device
    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • 2.0

    • HDCP Compliance
    • 2.2/1.4

    • USB Compliance
    • 2.0

    • Max. Distance
    • 4K2K@60 4:4:4 100m (330ft) [CAT.6A]
      4K2K@60 4:4:4 up to 300m (990ft) (OM3) / 400m (1320ft) (OM4)

    • Max. Data Rate
    • 18 Gbps

    • Max. Resolution
    • 4K2K@60 (4:2:0 10bits)
      4K2K@60 (4:4:4 8bits)

    • HDR
    • 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color

    • Audio Support
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, multi-channel PCM Audio

    • CEC control
    • Bypass

    • IR Control
    • Two Way

    • IR Frequency
    • 38—56 KHZ

    • RS232 Control
    • Full Duplex (115,200 bps)

    • ESD Protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design
    • Metal

    • Casing Style
    • Wall Mountable

    • Power Connection
    • Interlocking Barrel

    • Power Supply
    • 12V DC, 2A

    • Power Consumption
    • 12.5 watts (Max.)

    • Operating Humidity
    • 20-90% RH (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    • 685 g

    • Package Weight
    • 1531g

    • Certifications
    • CE, FCC, RoHS
