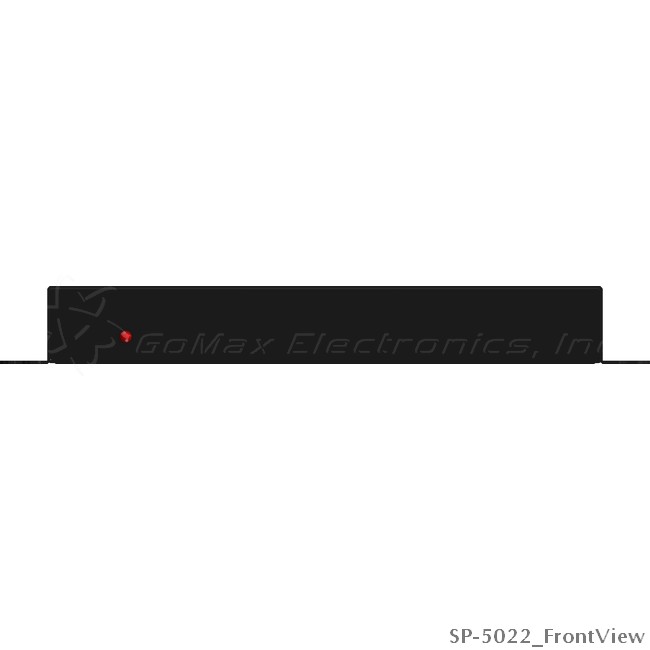

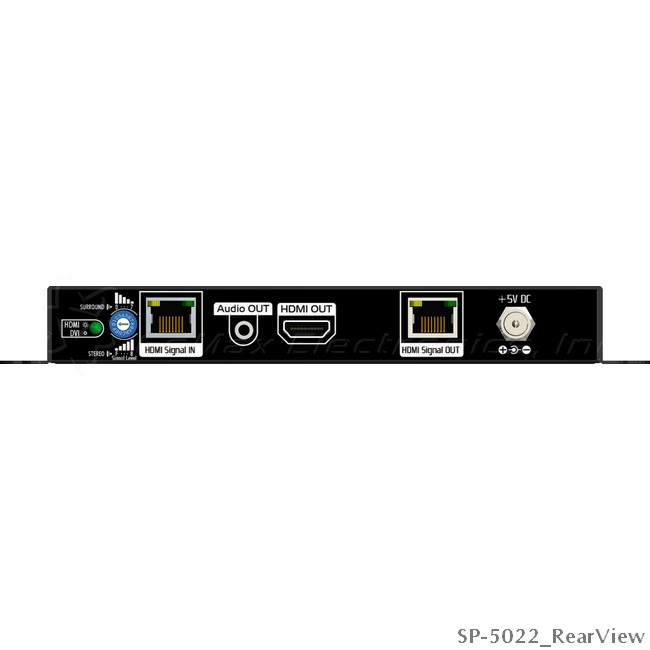

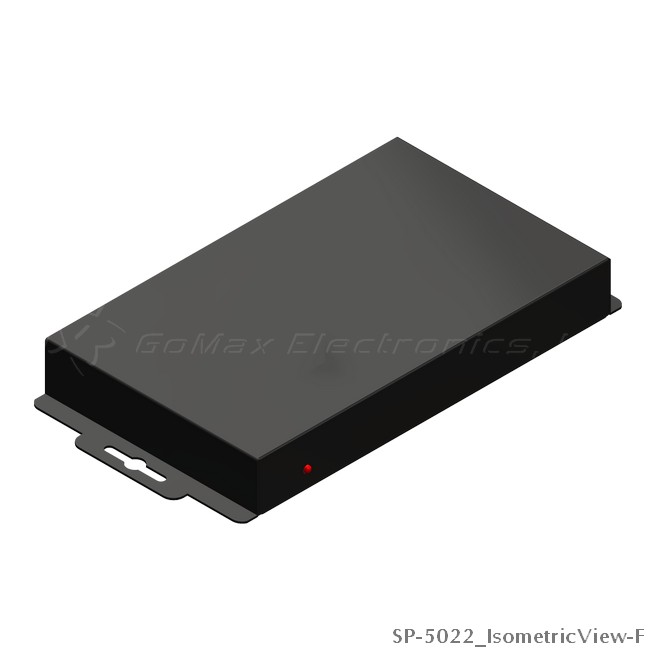

    SP-5022
    1x2 HDMI splitter/repeater over single cat.X
    • State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and reliability
    • Support HDMI Deep Color & 3D / DVI 1.0 compliant
    • HDCP 1.1 compliant
    • Regenerates the HDMI signal
    • Supports audio output
    • Extends up to 60m (200ft) (720p / 1080i) of input Cat.X cable
    • Extends up to 15m (50ft) of output HDMI cable
    • Extends up to 60m (200ft) (720p / 1080i) of output Cat.X cable
    • Extends up to 40m (130ft) (1080p) of output Cat5/6 cable
    • Minimizes the cable skew by adjustable 8-level equalization control
    • Pure unaltered uncompressed 7.1ch digital HDMI over Cat.X cable transmission
    • Allows cascading
    • Perfectly integrated with other HDMI over Cat.X series products
    Overview

    The SP-5022 1x2 HDMI Splitter/Repeater over Cat.X with Local Out allows you to distribute one of the two HDMI/DVI video sources 2 separate HDTV displays including one remotely cascade output via Cat-5/5e cost effective cable. This splitter offers the most flexible solution by which the high definition video and high quality audio can be transmitted to different local locations through HDMI cables and also to the next stage over a long distance without degrading the quality. The cascade ability allows pure digital video and audio broadcast station by station and therefore make extending HDMI compliant video and audio anywhere feasible.

    SPECIFICATIONS
    Technical
    • HDMI Compliance

    • 1.3

    • HDCP Compliance

    • 1.1

    • Max. Distance

    • Up to 1080p60@40m (Cat 5e/6) -@50m (Cat 6a)
      Up to 720p60@60m (Cat 5e/6) -@70m (Cat 6a)

    • Max. Data Rate

    • 6.75 Gbps

    • Max. Resolution

    • 1080p@60 (4:2:2—12bits)
      1080p@60 (4:4:4—8bits)

    • Audio Support

    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 Audio

    • CEC control

    • Pass through

    • ESD protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

    Mechanical
    • Housing Design

    • Metal

    • Casing Style

    • Wall Mountable

    • Power Connection

    • Interlocking Barrel

    • Power Supply

    • 5V DC, 4A

    • Power Consumption

    • 7.5 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 527g (1.2 lbs)

    • Package Weight

    • 985g (2.2 lbs)

    • Certifications

    • CE, FCC, RoHS
