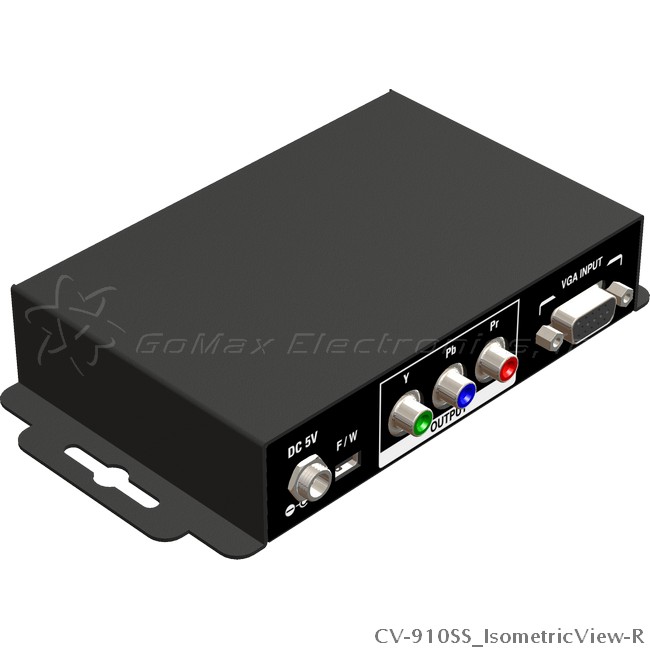

CV-910S
VGA to Component & CVBS Scaler Converter
Overview
The CV-910S VGA to Component & CVBS Scaler Converter offers an easy and instant approach for converting analog PC video (VGA) to analog Component video (YPbPr) / CVBS in real time. With this module, YPbPr/CVBS based receivers such as TV can be readily connected to VGA based devices such as PC. This cost effective solution lets you keep using your non-HDMI/DVI display to access VGA source.
SPECIFICATIONS
Technical
-
Max. Resolution
-
⎖ Input : VGA (640x480), XGA (1024x768)
⎖ Output : YPbPr (480p／720p )
-
ESD Protection
-
8 KV—Contact Discharge
15KV—Air Discharge
Mechanical
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
Interlocking Barrel
-
Power Supply
-
5V DC, 2A
-
Power Consumption
-
5 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
280g (0.6 lb.)
-
Package Weight
-
640g (1.4 lb.)
-
Certifications
-
CE, FCC, RoHS
ACCESSORIES
RESOURCES
- DOCUMENTATION
- User Manual
