- Extends the transmission up to 264feet (80 meters) from USB device
- Supports four USB peripheral devices
- Supports USB 1.0(low-speed), USB 1.1(full-speed) and USB 2.0(high-speed)
- Supports suspend/resume detection
- Does not require additional drivers
- Supports hot plug function
- Easy to setup

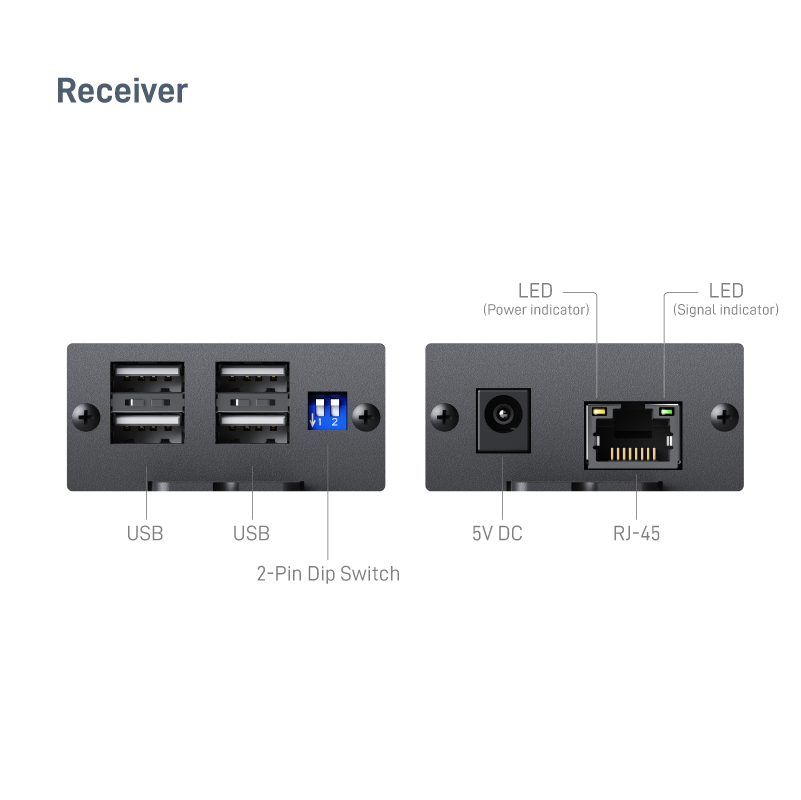

The EX-27 USB 2.0 Extender over Single Cat.X makes USB equipped device accessible over single Cat.X cable. EX-27 helps you extend USB peripheral device up to 264feet (80 meters) over single Cat.X cable. The extender consists of two units, local and remote unit. The local unit connects to the PC and the remote unit connects to the peripheral device, such as USB printers, USB camera, USB Storage devices, USB Card-Readers, and more. EX-27 offers the most convenient solution for long distance USB 2.0 transmission path.
-
USB compliance
-
2.0
-
Max. Distance
-
Up to 100m (Cat 5e/6)
-
Max. Data Rate
-
480 Mbps
-
ESD protection
-
8 KV—Contact Discharge
15KV—Air Discharge
-
Housing Design
-
Metal
-
Casing Style
-
Wall Mountable
-
Power Connection
-
non-locking Barrel
-
Power Supply
-
12V DC, 2A
-
Power Consumption
-
⎖ TX;2 watts (Max.)
⎖ RX;4 watts (Max.)
-
Operating Humidity
-
20-90% RH (no condensation)
-
Operation temperature
-
0~40°C (32~104°F)
-
Product Weight
-
⎖ TX : 108g (3.8 oz.)
⎖ RX : 99g (3.5 oz.)
-
Package Weight
-
⎖ TX : 226g (8.0 oz.)
⎖ RX : 217g (3.5 oz.)
-
Certifications
-
CE, FCC, RoHS
- DOCUMENTATION
- User Manual
