    PCIE-502R
    4K144 HDMI PCIe Video Capture Card with Scaler, HDMI 2.1 loopout & Audio
    • PCIe Gen3 x2 (x4 mechanical) with low profile design
    • HDMI video and audio streams over PCIe
    • Supports video resolution up to 4K2K@60/ 1080P@240/ 2560x1440@120/ 4K2K@30 HDR1 (Video stream over PCIe)
    • HDMI 2.1 compliant
    • Supports HDMI input & output up to 4K2K 144Hz (without DSC)
    • Supports HDR, which is 4K2K@120 4:4:4 10bits, 4:2:2 12bits, 4:2:0 10bits/12bits
    • Supports VRR(Variable Refresh Rate)
    • HDCP 2.2 and 1.4 compliant
    • Supports scaler
    • Supports mic in mix with HDMI audio
    • Supports HDMI audio extraction
    • Supports HDR10 to SDR conversion
    • Supports playing 4K120 HDR on HDMI out while streaming perfect 4K2K@60, 1080P@240/120, or 2560x1440@120 with SDR colors for gameplay capture.
    • Auto-detection on video format to ensure plug-play operations
    • Recording Video Format: Software Compression
    • Works on multiple operating system platforms (Windows 7/8.1/10, Mac and Linux OS)
    • Compatible with most 3rd party software such as OBS Studio and AMCap
    • Supports MJPG/YUY2
    • Low Lattency (4 frame at 4K60)
    Overview

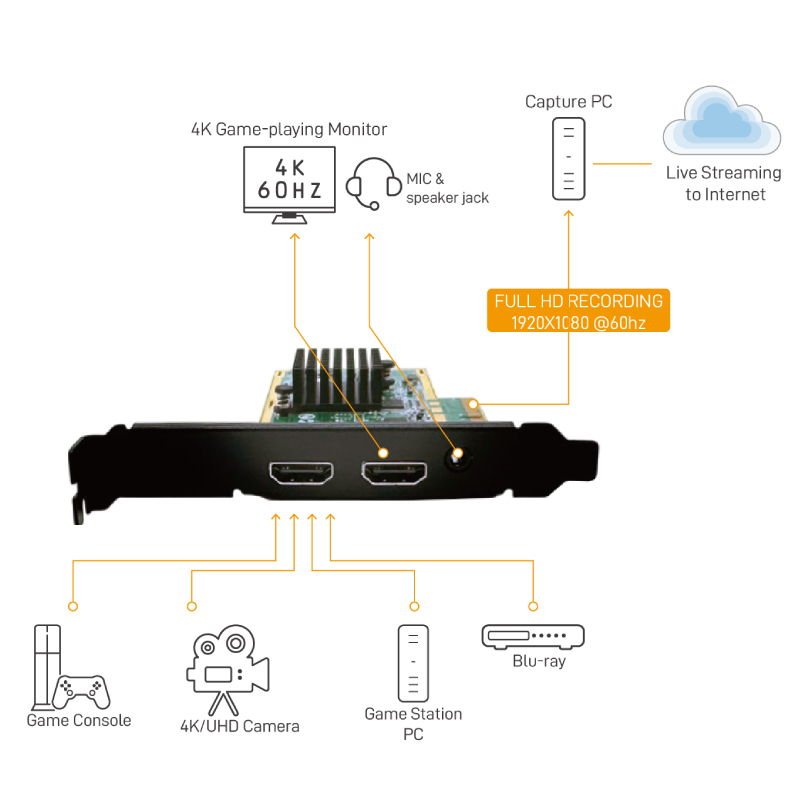

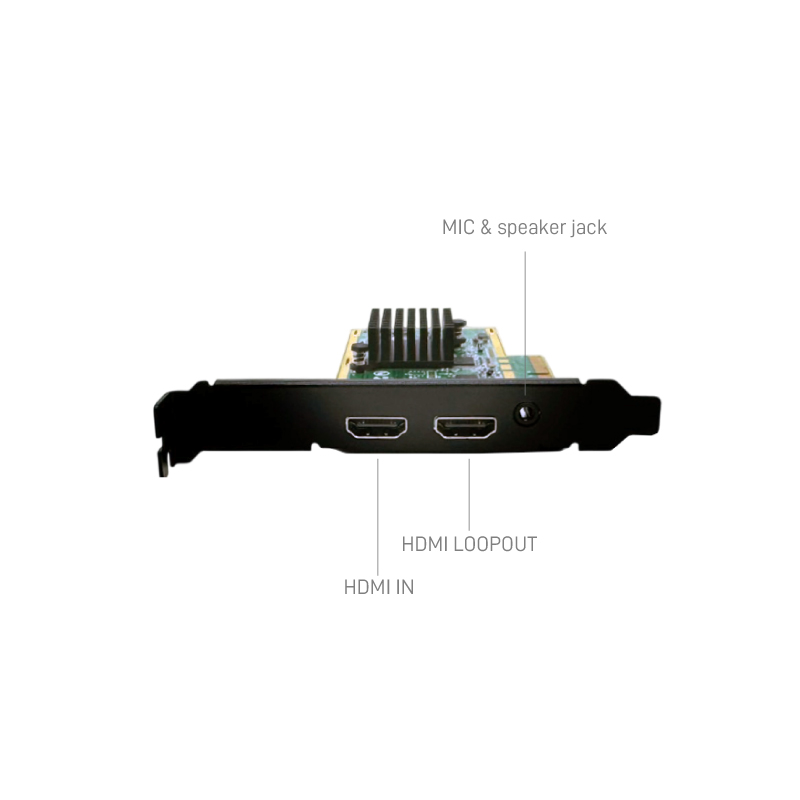

    The PCIE-502R 4K144 HDMI PCIe Video Capture Card with Scaler, HDMI 2.1 loopout & Audio provides a professional way to capture HDMI video signals. It adopts PCIe x4 Gen3x2 interface, which can realize high-speed transmission. Besides, the HDMI input and loopout can support up to 4K2K@144. With this device, users can connect to 4K2K@144 source and capture Ultra HD (4K2K@60) video. PCIE-502R also uses large volume image buffer technology which effectively avoids the video tearing. The high sampling rate and high sampling accuracy assure images with high sharpness, rich details, and less color edges.
    SPECIFICATIONS
    Technical
    • Input/loopout Video bandwidth

    • Up to FRL 6 (48G)

    • Video bandwidth via PCIe

    • Up to 10 Gbps

    • Video support(PCIe)

    • Up to 4K2K@60/ 1080P@240/ 2560x1440@120/ 4K2K@30 HDR

    • Video support(HDMI)

    • Up to 4K2K 144Hz 4:4:4/4:2:2/4:2:0

    • Audio Input

    • HDMI Embedded Audio & Stereo audio Input

    • Audio Format

    • 2CH 16bit PCM

    • Recording Mode

    • Software Compression

    • Recording Video Format

    • RGB/YUY2/NV12/I420/P010/ MJPEG

    • Operating System Compatibility

    • Windows 7, 8, 10, Mac OS X 10.9 or above, Linux

    • 3rd-Party Software Compatibility

    • OBS Studio (Windows, Linux)／AMCap (Windows)
      Potplayer (Windows)／Skype (Windows, OS X)
      Hangout (Windows)／TeamViewer (Windows)

    • Hardware Requirements

    • Desktop：Intel® Core™ i3-8XXX+NVIDIA® GeForce® GTX 1060 or Radeon™ RX560 or above
      Mac Operating System：MacOS High Sierra 10.13 or above
      iMac
      a) 3.6GHz Quad-Core Intel Core i7
      b) Radeon Pro 555 (2GB of VRAM)
      c) 16GB 2400MHz DDR4 Memory

    • ESD Protection

    • 8 KV—Contact Discharge
      15KV—Air Discharge

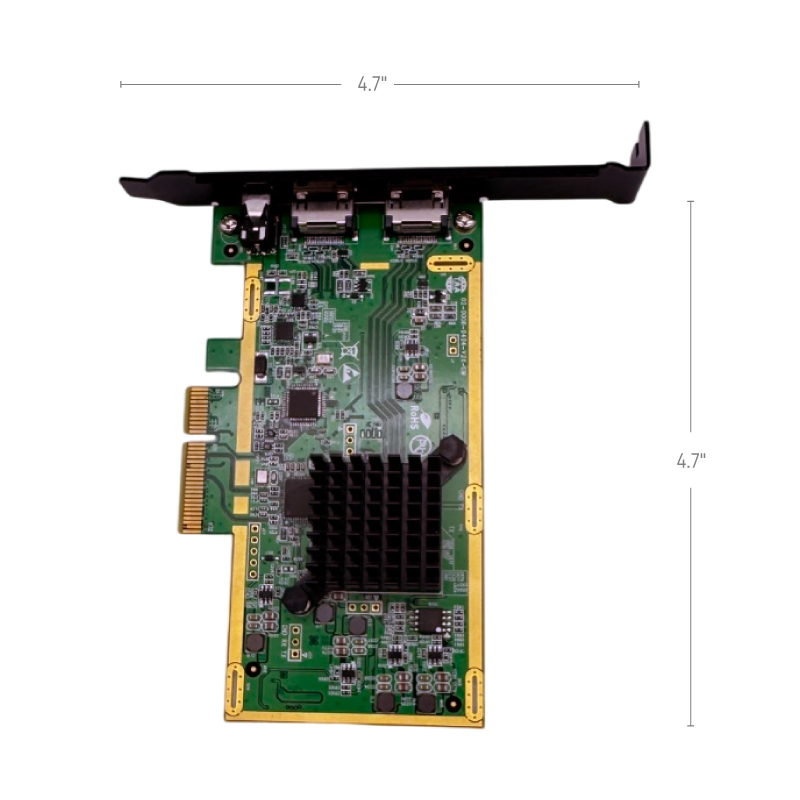

    Mechanical
    • Housing Design

    • Bracket

    • Casing Style

    • Plugable

    • Power Connection

    • PCIe

    • Power Consumption

    • 3 watts (Max.)

    • Operating Humidity

    • 20-90% RH (no condensation)

    • Operation temperature

    • 0~40°C (32~104°F)

    • Product Weight

    • 115g

    • Package Weight

    • 270g

    • Certifications

    • CE, FCC, RoHS
