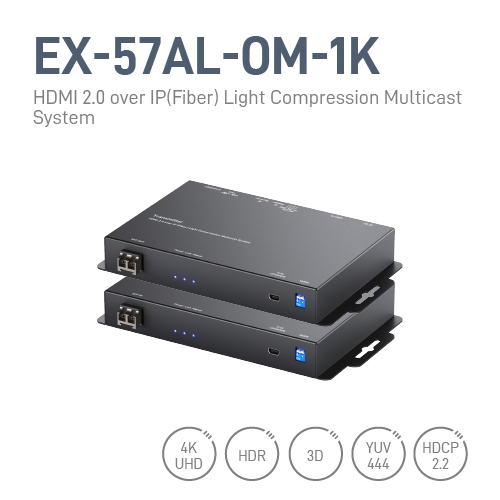

    EX-57AL-OM-1K
    HDMI 2.0 over IP (Fiber) Light Compression Multicast System
    • HDCP & EDID Bypass
    • Supports uncompressed HDMI Deep Color, full 3D & 4K2K@60 4:4:4 8bits
    • Auto equalization
    • Pure unaltered uncompressed 7.1ch digital HDMI over fiber transmission
    • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Bi-directional IR path-through
    • Full Duplex RS-232 control up to 115,200 bps through connector
    • Integrated port for LAN/ network device
    • Fiber extension and connection to a 10GbE Ethernet Switch (supported IGMP Snooping)
    • Supports software to configure & update device and to control the switching operation of the various signal types
    • Supports IP pass-through
    • Supports seamless switching

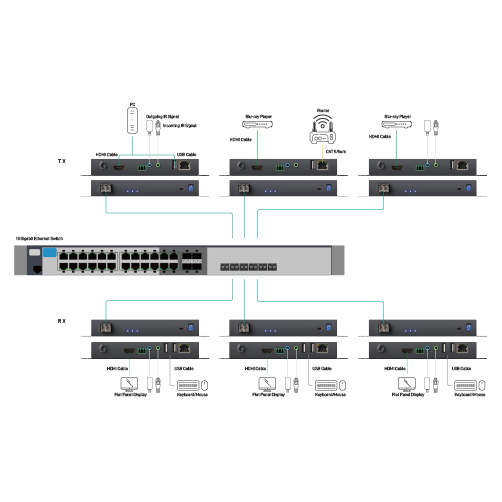

    • One to one, one to many & multi-casting broadcasting architecture
    • Supports multi-mode optic cable up to 300m (OM3) / 400m (OM4)
    • Support USB 1.1
    Overview

    The EX-57AL-OM-1K HDMI 2.0 over IP (Fiber) Light Compression* Multicast System boosts up your video/audio transmission distance up to 100m(330ft) over multi-mode fiber optic cable in Ultra-HD 4K2K@60(4:4:4) format. Users can readily extend Ultra-HD sources from Blu-ray Disc player, PS4, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides EX-57AL-OM-1K is HDCP compliant, and supports IR and RS-232 pass-through path. With broadcasting management software and 10 Gigabit Ethernet network switch (supported IGMP Snooping), EX-57AL-OM-1K is a complete Ultra-HD 4K2K@60(4:4:4) video broadcasting solution for digital signage. It can transmit Ultra-HD 4K2K@60(4:4:4) HDMI video broadcasting over IP network. The broadcasting format can be Point to Point, Point to Many, and Multi-Casting. Multi-casting is based on Managed Gigabit Switch with 802.1Q VLAN function which provides control remotely, so multi video and source allowed and supported.

    * Up to 4K@60 4:4:4 (4K@60 4:4:4 needs light compressssion)

    SPECIFICATIONS
    Technical
    • HDMI Compliance
    • 2.0

    • HDCP Compliance
    • 2.2

    • USB compliance
    • 2.0

    • Max. Distance
    • Up to 4Kp60@100m (Cat 7)

    • Max. Data Rate
    • 7.5 Gbps

    • Max. Resolution
    • 4K2K@60 (4:2:0 10bits)
      4K2K@60 (4:4:4 8bits)

    • HDR
    • HDR 10, HDR 12 and Dolby Vision

    • Latency
    • zero-latency

    • Audio Support
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, multi-channel PCM Audio

    • IR Control
    • Two Way

    • IR Frequency
    • 38—56 KHZ

    • RS232 Control
    • Full Duplex (115,200 bps)

    • ESD Protection
    • 8 KV—Contact Discharge
      15KV—Air Discharge

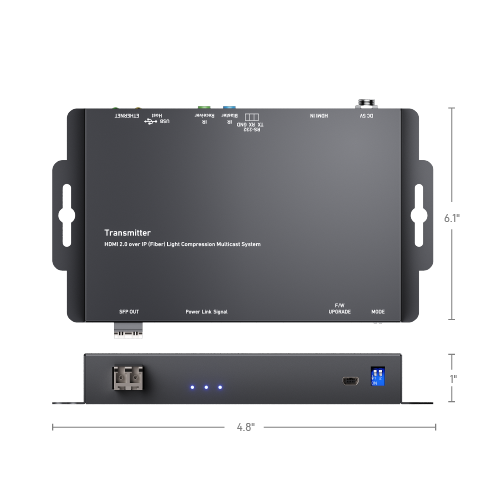

    Mechanical
    • Housing Design
    • Metal

    • Casing Style
    • Wall Mountable

    • Power Connection
    • Interlocking Barrel

    • Power Supply
    • 5V DC, 4A

    • Power Consumption
    • 12 watts (Max.)

    • Operating Humidity
    • 20-90% RH (no condensation)

    • Operation temperature
    • 0~40°C (32~104°F)

    • Product Weight
    • ⎖ TX : 654g (1.44 lb.)
      ⎖ RX : 624g (1.37 lb.)

    • Package Weight
    • 2.07kg (4.6 lb.)

    • Certifications
    • CE, FCC, RoHS
